RPM for Rural Hospitals: Architecture, Cost, and 90-Day Launch Plan (2026)

A rural hospital deploying Remote Patient Monitoring in 2026 faces the same seven-layer technology stack a 500-bed health system uses, plus three constraints that completely change the architectural choices. A meaningful share of rural patients lack modern-benchmark broadband. The FCC’s 2024 Section 706 Report documents roughly 16.9% of rural Americans without 25/3 Mbps access and approximately 28% without 100/20 Mbps. The IT team is one or two people. Medicare cost-based reimbursement covers operating cost but does not fund the initial capital.

Those three constraints have blocked rural RPM scale for a decade. The technology existed. The reimbursement existed. The clinical evidence existed. What did not exist was a capital path, a cellular-first architecture maturity, and an operational model that fit rural facility staffing. All three conditions changed between 2023 and 2026. Cellular-enabled medical-grade devices matured. Device-agnostic ingestion platforms emerged. And in December 2025, the Rural Health Transformation Program awarded $50 billion across all 50 states with RPM expansion as an explicit funded activity in multiple state plans.

The RPM spending trajectory underscores why rural programs cannot wait. The Peterson Health Technology Institute’s April 2025 report “Evolving Remote Monitoring: An Evidence-Based Approach to Coverage and Payment” documents that Medicare RPM spending grew from $6.8 million in 2019 to $194.5 million in 2023, a 28x increase in four years. PHTI’s analysis found, critically, that RPM services were most heavily used by non-white urban dually-eligible populations rather than by rural populations the technology was supposed to serve. RHTP funding is explicitly structured to close that rural-uptake gap; the rural hospitals that launch in the Q3 2026 – Q1 2027 procurement window are positioning against both the technology opportunity and the policy signal that rural populations should see this growth next.

The question shifted. It is no longer “can we afford rural RPM.” It is “can we execute the 90-day launch without the common failure modes that kill rural RPM programs in months two and three.”

This guide covers the architecture rural RPM actually requires, why cellular-first is non-negotiable, which clinical use cases produce measurable revenue, the Medicare RPM billing mechanics that make the program financially sustainable, the 90-day launch sequence, and the RHTP funding pathway that closes the capital gap.

For the broader seven-component CAH technology stack, see Technology Stack for a 25-Bed Rural Hospital. For RPM as part of the Hospital-at-Home platform, see Hospital at Home: The Complete Technology Platform Guide.

What Does Rural RPM Architecture Actually Require?

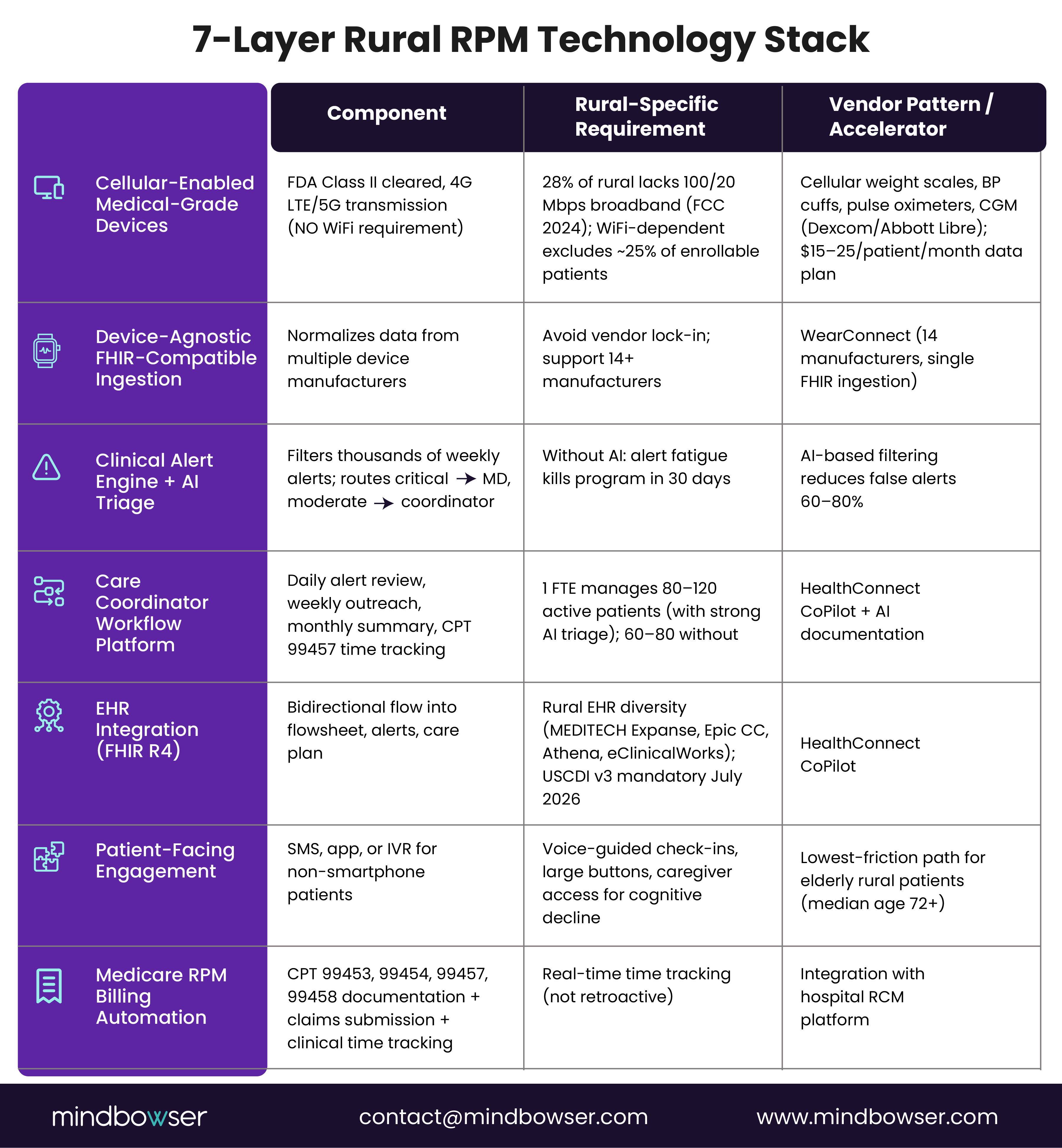

Rural RPM has seven technology layers. Each has a vendor market. Each has rural-specific requirements that differ from urban deployment patterns.

1. Layer 1: Cellular-enabled medical-grade devices: FDA Class II cleared devices that transmit data over cellular networks without requiring home WiFi. Device categories vary by clinical use case (pulse oximeters, blood pressure cuffs, weight scales, continuous glucose monitors, peak flow meters, ECG patches).
2. Layer 2: Device-agnostic FHIR-compatible ingestion layer: The abstraction layer that normalizes data from multiple device manufacturers into a single data stream compatible with EHR integration. This is where architectural discipline separates sustainable platforms from vendor-lock-in traps. Our WearConnect accelerator handles 14 device manufacturers through a single FHIR-compatible ingestion layer.
3. Layer 3: Clinical alert engine with AI-based triage filtering: Without AI filtering, a rural RPM program managing 100 patients produces thousands of alerts per week, most clinically irrelevant. Alert fatigue becomes the operational bottleneck within 30 days. AI filtering reduces false alerts by 60-80% and routes clinically significant alerts to the care coordinator.
4. Layer 4: Care coordinator workflow platform: The interface where a care coordinator manages 80-120 active RPM patients. Daily alert review, weekly patient outreach, monthly clinical summary generation for physician review, and Medicare RPM time tracking for CPT 99457 billing.
5. Layer 5: EHR integration: Rural hospitals run MEDITECH Expanse, Epic Community Connect, Athena, or eClinicalWorks. RPM data must flow into the patient’s EHR flowsheet, alert history, and care plan. Manual data entry between RPM platform and EHR kills the business case. FHIR R4 integration is the standard, with USCDI v3 mandatory July 2026 for certified health IT.
6. Layer 6: Patient-facing engagement interface: SMS, app, or IVR for non-smartphone patients. Elderly rural patients need the lowest-friction engagement path. Voice-guided check-ins, large-button interfaces, caregiver access for patients with cognitive decline.
7. Layer 7: Medicare RPM billing automation: CPT 99453, 99454, 99457, 99458 documentation and claims submission. Time tracking for clinical staff interactions. Integration with the hospital revenue cycle management platform.

Rural RPM programs that skip or shortcut any layer fail predictably. The programs that execute all seven, with rural-specific architecture choices at each layer, scale.

Why Cellular-First Architecture Is Non-Negotiable for Rural RPM

The rural broadband gap is not a statistical footnote. It is the architectural constraint that determines whether a rural RPM program enrolls its target patient population or excludes a meaningful share of it.

The FCC data: The FCC’s 2024 Section 706 Broadband Deployment Report tracks rural broadband access through a combination of provider reporting and direct measurement. The data shows approximately 16.9  of rural Americans lack fixed broadband at the older 25/3 Mbps threshold, and roughly 28  lack access at the current 100/20 Mbps standard that the FCC adopted in March 2024. In specific rural Census tracts, the gap at modern benchmarks exceeds 40  . The Rural Digital Opportunity Fund and state-level broadband expansion programs are closing the gap slowly, but the patient populations rural hospitals serve today include broadband-excluded households, and the constraint is getting more severe as the benchmark moves to 100/20.

What this means for RPM architecture:
If the RPM platform requires home WiFi for device connectivity, the program excludes roughly one in four enrollable patients at launch. The excluded patients tend to be older, lower-income, and in more isolated geographies — which correlates with higher chronic disease burden and therefore higher clinical need for RPM. The platform architectural choice produces a selection bias that harms exactly the patients RPM is designed to serve.

Cellular-first solves this:
Cellular-enabled devices transmit data over 4G LTE or 5G networks without requiring home WiFi. The devices are FDA Class II cleared with the same clinical accuracy standards as WiFi-enabled devices. Cellular data plans run $15-25 per patient per month depending on volume and carrier. At 100 enrolled patients, cellular data costs total $18K-$30K annually which material but manageable within the $120K annual Medicare RPM revenue at that patient volume.

Device manufacturer patterns:
Several medical device manufacturers produce cellular-first device lines. Specific manufacturer selection matters less than the underlying architectural pattern: the RPM platform must operate on a device-agnostic ingestion layer that supports any FDA-cleared cellular device, not a proprietary hub requiring home WiFi connectivity.

Reliability considerations:
Not all rural areas have uniform cellular coverage. Signal strength varies by geography, cell tower density, and terrain. Rural RPM programs must validate cellular coverage in the patient’s home during onboarding, not during a clinical event. Carrier-agnostic device selection (supports multiple carriers) provides fallback options in areas with variable coverage.

Which Clinical Use Cases Produce Measurable Revenue at a Rural Hospital

Rural RPM works clinically and financially for five use cases with measurable reimbursement capture at CAH scale.

Use Case 1: Congestive Heart Failure (CHF) monitoring:
Daily weight measurement plus symptom check-in for patients with Class II-III CHF. The intervention targets readmission reduction, which matters for both clinical outcomes and CMS Hospital Readmissions Reduction Program (HRRP) penalty exposure. Typical enrollment: 30-45 CHF patients per rural hospital service area. Annual Medicare RPM revenue at 40 enrolled: $45K-$55K.

Use Case 2: COPD management:
Pulse oximetry plus symptom tracking for moderate-to-severe COPD. Seasonal exacerbation monitoring is the primary clinical value. Typical enrollment: 25-40 COPD patients. Annual Medicare RPM revenue at 30 enrolled: $35K-$42K.

Use Case 3: Diabetes management:
Continuous glucose monitoring (CGM) integration for type 2 diabetics with A1C above 8% or type 1 diabetics requiring intensive management. A1C improvement is the measurable outcome that supports commercial value-based payment contracts in addition to Medicare RPM billing. Typical enrollment: 40-60 diabetic patients. Annual Medicare RPM revenue at 50 enrolled: $58K-$70K.

Use Case 4: Hypertension management:
Home blood pressure monitoring for uncontrolled hypertension patients. Care plan adherence and medication titration are the clinical outcomes. Typical enrollment: 50-80 hypertensive patients. Annual Medicare RPM revenue at 60 enrolled: $68K-$82K.

Use Case 5: Post-acute monitoring (30-day post-discharge):
Short-duration RPM for patients discharged after hospitalization for specific conditions (CHF, COPD, pneumonia, surgical procedures). 30-day monitoring window targets readmission reduction. Typical enrollment: rotating 20-30 patients at any time, ~200-300 unique patients annually. Annual Medicare RPM revenue: $30K-$45K.

Combined revenue at full deployment:
A rural hospital running all five use cases at typical enrollment volumes generates $200K-$300K in annual Medicare RPM revenue from roughly 150-200 active enrolled patients. At peak operational maturity, some rural RPM programs exceed $400K annual revenue. These are Medicare-only numbers; commercial payer RPM reimbursement adds 15-30% depending on payer mix.

Clinical outcome evidence:
UAMS research on rural RPM deployments documents measurable clinical outcomes: 12-18% readmission reduction for CHF patients, 8-15% A1C reduction for diabetics, comparable or better medication adherence than in-clinic care. The Bipartisan Policy Center’s Maximizing RPM Value explainer documents similar outcomes at scale.

Medicare RPM Billing: CPT 99453-99458 at a Rural Hospital

Medicare RPM billing operates through four CPT codes, each covering a specific component of the RPM service. All four apply to Critical Access Hospitals and PPS rural hospitals.

1. CPT 99453: Initial setup and patient education. Billed once per device deployment per patient episode. Reimbursement: approximately $19. Documentation requirements: patient consent, device dispensation record, patient/caregiver education delivery.
2. CPT 99454:  Device supply with daily data transmission over 30-day period. Billed monthly per patient. Reimbursement: approximately $50-60. Requires at least 16 days of data transmission during the 30-day period. Documentation: transmission logs, data quality check, device functionality confirmation.
3. CPT 99457: First 20 minutes of clinical staff time managing the patient per calendar month. Reimbursement: approximately $48-60. Requires real-time interaction with patient or documentation of RPM data review and care plan adjustment. Documentation: time log, clinical decisions made, care plan impact.
4. CPT 99458: Each additional 20 minutes of clinical staff time per calendar month, billed in 20-minute increments. Reimbursement: approximately $38-40 per increment. Same documentation as 99457 with time log showing additional engagement.

Revenue calculation at 100 enrolled patients:

• 99453 (device setup, amortized): ~$19 × 100 initial setups annually = ~$1,900
• 99454 (monthly device transmission): $55 average × 100 × 12 = $66,000 annually
• 99457 (first 20 min clinical time): $54 average × 100 × 12 = $64,800 annually
• 99458 (additional time for ~30% of patients): $39 × 30 × 12 = $14,040 annually

Combined annual Medicare RPM revenue at 100 patients: approximately $146,700.

CAH-specific billing considerations:

Medicare RPM is fee-for-service outpatient billing, not cost-report-based. Revenue flows immediately as services are rendered and billed, rather than waiting for the annual Medicare Cost Report cycle. This is financially meaningful for CAH cash flow. The CPT 99457 and 99458 clinical time billing works regardless of whether the clinical staff is physician, APP, or care coordinator RN under supervision.

Common billing mistakes that eliminate revenue:

• Failure to document CPT 99457 clinical time in real-time (retroactive reconstruction fails audit)
• Missing device transmission threshold for CPT 99454 (fewer than 16 days of data in the period)
• Consent documentation gaps that disqualify the patient from CPT 99453 billing
• Clinical time tracking that does not distinguish RPM time from other chronic care management time (risk of duplicate billing)

For the deeper financial picture including how Medicare RPM revenue integrates with CAH cost-based reimbursement, see our Critical Access Hospital Reimbursement and Technology ROI guide.

The 90-Day Rural RPM Launch Sequence

The 90-day launch is achievable when device selection, clinical workflow, and EHR integration happen in parallel streams rather than sequential dependencies.

Why this timeline works for rural:

Rural RPM launches at smaller initial enrollment than urban academic medical center deployments. The smaller scale enables faster iteration, tighter clinical oversight during pilot, and lower risk of workflow failures at scale. Commercial RPM platforms and RHTP-funded deployments both support this compressed timeline.

Traditional rural RPM launches:

Most rural hospitals historically took 6-12 months to launch RPM, driven by sequential capital approval, vendor negotiation, and integration timelines. The compressed 90-day timeline assumes either pre-built platform accelerators or RHTP-funded platforms that remove the capital and negotiation bottleneck.

Step 1: Device Selection and Cellular Infrastructure

Device selection is where rural RPM architecture decisions either enable or constrain the program for years after launch.

The device-agnostic architecture principle:

Lock into a single device vendor and the program is captive to that vendor’s pricing, availability, and clinical accuracy. Device markets evolve. New sensors, better battery life, lower costs, different clinical indications all emerge over multi-year horizons. The RPM platform must treat devices as interchangeable components within a FHIR-compatible ingestion layer.

WearConnect supports 14 device manufacturers through a single ingestion layer. The abstraction means a rural hospital can start with one device manufacturer for CHF monitoring, add a different manufacturer for CGM diabetes monitoring, and change BP cuff vendors later, all without platform rework.

Device selection matrix by clinical use case:

• CHF: Cellular weight scale (Bodimetrics, iHealth, Tenovi) plus optional BP cuff
• COPD: Cellular pulse oximeter plus symptom check-in via patient app
• Diabetes: CGM (Dexcom, Abbott Libre) integrated via healthcare provider data feed or cellular BP cuff with medication adherence tracking
• Hypertension: Cellular BP cuff (validated against AMA home BP monitoring guidelines)
• Post-acute: Multi-parameter device (weight + pulse ox + BP) for condition-agnostic monitoring

Cellular carrier contracting:

Data plans run $15-25 per device per month. Larger rural hospitals or hospital networks negotiate volume discounts. Carrier-agnostic devices support fallback coverage in areas with variable signal strength.

Device lifecycle management:

Distribution: in-clinic handoff at enrollment or direct mail to patient with guided setup call. Return: pre-paid return kit at discharge from RPM program. Maintenance: device firmware updates, battery replacement, replacement for damaged devices. Typical device replacement rate: 5-8% annually.

Step 2: Patient Enrollment Workflow and Onboarding

Patient enrollment is where rural RPM programs either build a sustainable patient pipeline or struggle to reach minimum viable enrollment.

Patient identification:
EHR-based criteria queries identify eligible patients for each clinical use case. Diagnosis codes, clinical measurements (A1C, BNP, BP), medication lists, and recent hospitalization triggers generate candidate lists. Care coordinator reviews candidates against clinical appropriateness and contacts for enrollment.

Consent process:
CMS RPM documentation requires specific patient consent covering: participation in RPM program, device dispensation, data transmission, clinical team monitoring, and billing for Medicare-covered RPM services. Consent can be verbal (with documentation) or written. Rural patients often prefer in-person clinic visits for consent discussion rather than phone or video.

Device dispensation:
In-clinic handoff is the lower-friction path for elderly rural patients. The patient receives the device, care coordinator provides setup assistance and initial training, and the patient takes the device home with functional transmission already established. Mail-delivery dispensation is faster for high-volume programs but creates 20-30% higher onboarding failure rates.

Onboarding training for elderly patients:
Rural RPM patients skew older (median age 72+ in most programs). Training must work for patients with limited smartphone experience. Voice-guided setup, large-button interfaces, written setup instructions with pictures, and caregiver involvement for cognitively impaired patients all improve onboarding success. Budget 30-60 minutes per patient for initial onboarding.

First 30 days compliance monitoring:
Typical rural RPM dropout rates: 20% in first 14 days without structured onboarding, <10% with structured onboarding. The dropouts are not randomly distributed. They concentrate in patients with limited caregiver support, cellular signal issues at home, or unclear clinical benefit understanding. Proactive outreach during first 30 days captures the majority of at-risk patients.

Step 3: Clinical Workflow and Care Coordinator Staffing

Care coordinator staffing is the operational variable that determines whether the RPM program is sustainable or burns out its staff by month 3.

Care coordinator role:
Daily alert review (filtered by AI triage layer, not raw alert volume). Weekly patient outreach for compliance and clinical check-in. Monthly clinical summary for physician review covering each enrolled patient. Care plan coordination with primary care team. Medicare RPM time tracking for CPT 99457/99458 documentation.

Typical rural CAH staffing model:
One FTE care coordinator manages 80-120 active RPM patients. The ratio depends on patient acuity mix, care model sophistication, and AI triage quality. Programs with weak AI triage require 60-80 patients per care coordinator. Programs with strong AI triage scale to 120+.

CPT 99457 time tracking:
Medicare requires documentation of at least 20 minutes of clinical staff time per patient per calendar month for CPT 99457 billing. This is the single highest-risk documentation requirement in the RPM workflow. Real-time time tracking (care coordinator logs minutes as engagement happens) protects revenue. Retroactive reconstruction at month-end fails audit review.

AI documentation support:
Ambient AI tools reduce care coordinator documentation time by 30-40% per engagement. The coordinator focuses on clinical decision-making and patient interaction rather than note composition. AI Medical Summary generates structured notes from engagement transcripts that meet CMS documentation requirements.

Integration with chronic care management (CCM) programs:

Rural hospitals with existing CCM programs (G0511 or CPT 99490/99491) can integrate RPM care coordination with CCM workflow. This creates operational efficiency but requires careful time-tracking separation to avoid duplicate Medicare billing for overlapping patient engagement.

For the AI documentation mechanics that expand care coordinator capacity, see our upcoming guide on How AI Replaces 3 FTEs in Rural Care Management Teams.

Step 4: EHR Integration and Documentation Automation

EHR integration is where rural RPM programs either become sustainable clinical workflows or remain isolated data silos that clinical staff ignore.

Why integration matters:

Physician review of RPM data requires that data be visible within the clinical workflow the physician already uses. Data in a separate RPM platform that requires separate login is data that gets ignored. Integration into EHR flowsheet, alert history, and care plan brings RPM data into the standard clinical decision flow.

Integration requirements:

• FHIR R4 Observation resources for clinical measurements (weight, BP, SpO2, glucose)
• FHIR Condition resource linkage for chronic disease context
• FHIR CarePlan resource for care plan coordination
• Alert routing into EHR messaging or inbox
• Care coordinator documentation flowing into EHR progress notes
• Medicare RPM billing data flowing into revenue cycle platform

Rural EHR integration patterns:

• MEDITECH Expanse: FHIR R4 APIs available, integration through MEDITECH integration partners. 4-6 weeks typical integration timeline.
• Epic Community Connect: Full FHIR R4 capability inherited from host Epic instance. 3-5 weeks integration when host Epic instance cooperates.
• Athena Clinicals: Native FHIR support, 3-4 weeks integration.
• eClinicalWorks: Variable FHIR maturity by version; older versions may require middleware. 5-8 weeks integration.

USCDI v3 July 2026 mandate:

Certified health IT must expose FHIR R4 APIs supporting United States Core Data for Interoperability v3 by July 2026. This is the regulatory forcing function that is closing integration gaps at rural EHR vendors. RPM integration in 2026 benefits from improving vendor FHIR maturity.

HealthConnect CoPilot handles FHIR-based integration across the rural EHR environment. The accelerator compresses integration timelines by 40-60% compared to custom development.

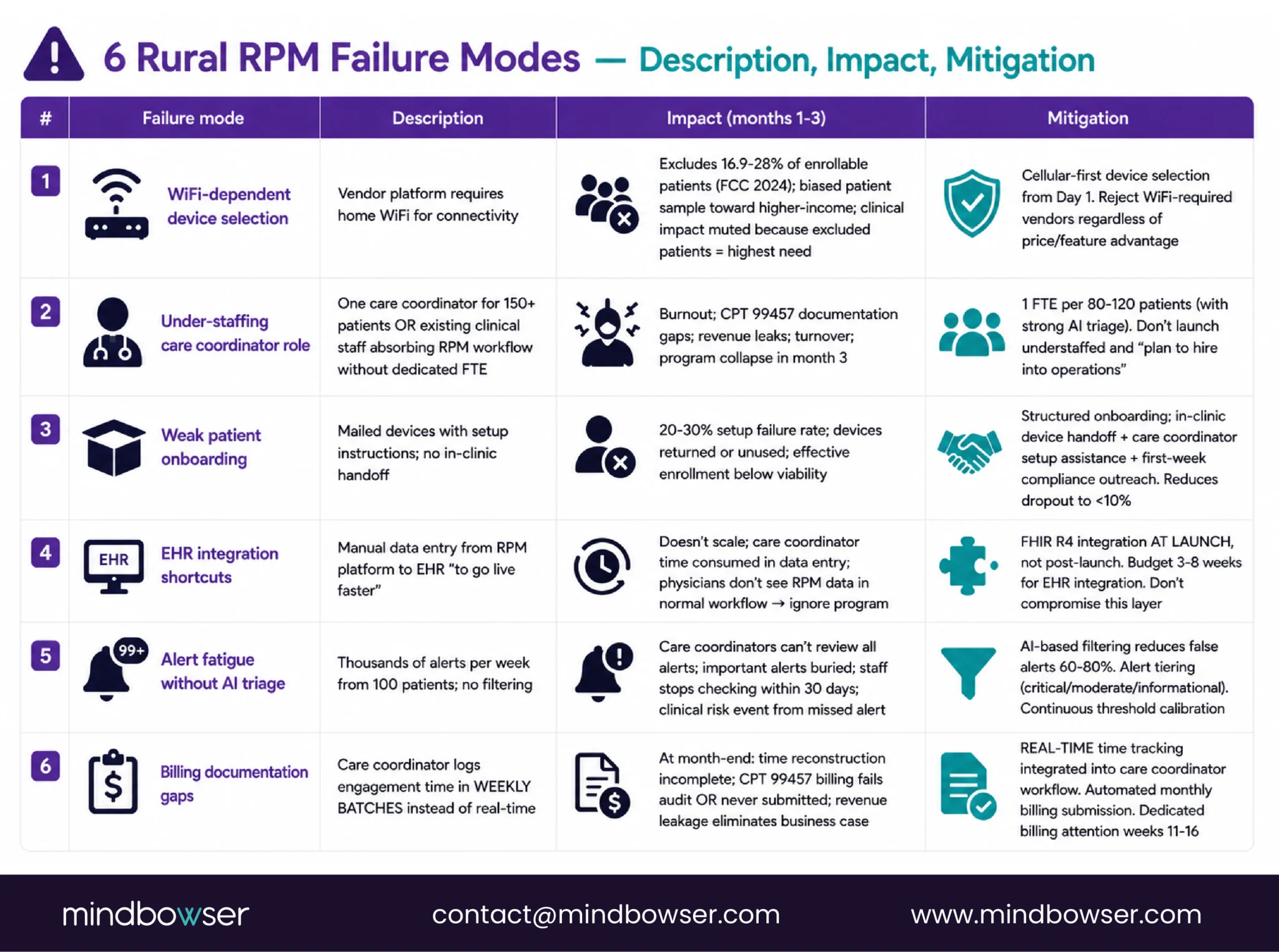

Where Rural RPM Programs Fail (and How to Avoid It)

Six failure modes we see in rural RPM launches. Each is preventable with proper sequencing.

Failure 1: WiFi-dependent device selection:
Program selects a device platform that requires home WiFi for connectivity. A meaningful share of enrollable patients excluded from day one, roughly 16.9% at the 25/3 Mbps threshold, 28% at the 100/20 standard per FCC 2024 data. Patient selection bias toward higher-income, better-connected rural residents. Clinical impact is muted because the patients excluded are exactly the population most likely to benefit.

Mitigation: Cellular-first device selection from day one. Reject vendor platforms that require home WiFi regardless of price or feature advantages.

Failure 2: Under-staffing care coordinator role:
Program starts with one care coordinator for 150 patients or asks existing clinical staff to absorb RPM workflow. Burnout follows. CPT 99457 documentation gaps accumulate. Revenue leaks. Turnover follows burnout. Program operational capacity collapses in month 3.

Mitigation: One FTE care coordinator per 80-120 patients. AI documentation reduces the time per patient that enables higher patient-to-coordinator ratios. Do not launch understaffed and plan to hire into operations.

Failure 3: Weak patient onboarding:
Program mails devices to patients with setup instructions. 20-30% of patients cannot complete setup. Devices get returned or sit unused. Onboarding dropout reduces effective enrollment below viable volume.

Mitigation: Structured onboarding with in-clinic device handoff, care coordinator setup assistance, and first-week compliance outreach. Reduces dropout to <10%.

Failure 4: EHR integration shortcuts:
Program launches with manual data entry from RPM platform to EHR “to go live faster.” Manual data entry does not scale. Care coordinator time is consumed in data entry instead of clinical workflow. Documentation gaps emerge. Physicians do not see RPM data in their normal workflow and ignore the program.

Mitigation: FHIR R4 integration at launch, not post-launch. Budget 3-8 weeks for EHR integration work. Do not compromise on this layer.

Failure 5: Alert fatigue without AI triage:
Program generates thousands of alerts per week from 100 patients. Care coordinators cannot review all alerts. Important alerts get buried. Clinical staff stops checking alerts within 30 days. Clinical risk event occurs from a missed alert.

Mitigation: AI-based alert filtering reduces false alerts by 60-80%. Alert tiering (critical, moderate, informational) routes appropriately. Continuous alert threshold calibration based on patient population.

Failure 6: Billing documentation gaps.

Care coordinator logs engagement time in weekly batches rather than real-time. At month-end, time reconstruction is incomplete. CPT 99457 billing fails audit review or is never submitted. Revenue leakage eliminates the business case.

Mitigation: Real-time time tracking integrated into the care coordinator workflow. Automated monthly billing submission. Dedicated billing attention in weeks 11-16 post-launch to catch documentation gaps before they compound.

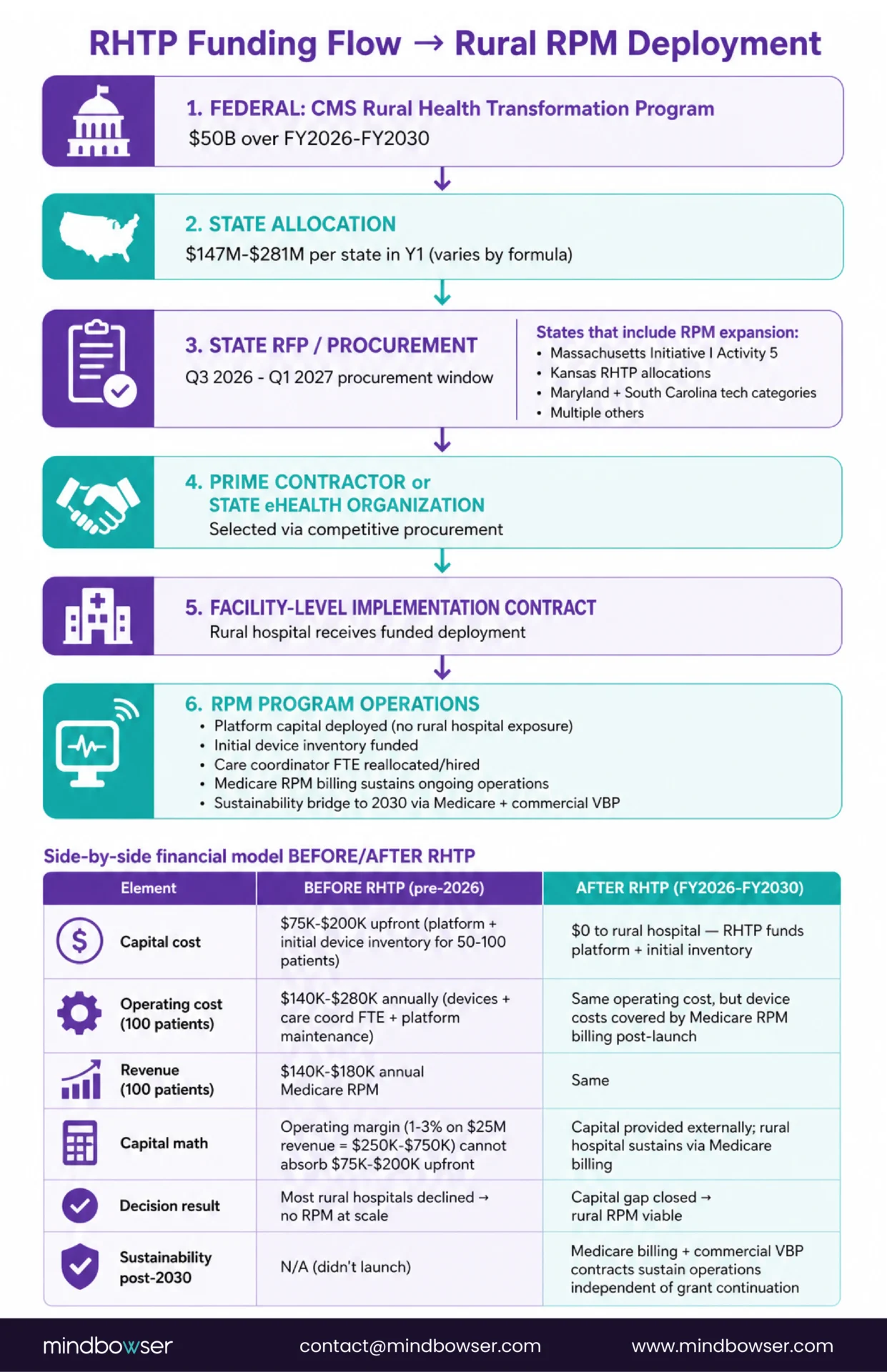

How RHTP Funding Makes Rural RPM Capital Investment Feasible

The financial model before RHTP kept most rural hospitals from RPM at scale despite clear clinical and revenue opportunity.

Financial model before RHTP:

Capital cost: $50K-$150K initial platform deployment plus initial device inventory for first 50-100 patients. Total upfront: $75K-$200K per facility.

Operating cost: $50-150 per patient per month device costs (varies by use case complexity) plus $80K-$110K annual care coordinator FTE plus $10K-$25K annual platform maintenance. For 100 enrolled patients: $140K-$280K annual run rate.

Revenue capture: $140K-$180K annual Medicare RPM revenue at 100 patients.

The revenue covers ongoing operations post-launch but does not fund the upfront capital. Rural hospitals operating at 1-3% margin cannot absorb $75K-$200K upfront capital from operating cash flow. Commercial financing is expensive. HRSA Flex grants are too small. State rural health grants are inconsistent.

Financial model after RHTP:

RHTP state procurement funds the platform capital cost and initial device inventory. Several state plans include RPM expansion as explicit activity: Massachusetts Initiative I Activity 5, Kansas RHTP allocations, Maryland and South Carolina technology categories, and similar in multiple other states.

With RHTP closing the capital gap:

• Platform capital deployed without rural hospital capital exposure
• Initial device inventory funded through state contract or state eHealth organization partnership
• Ongoing device costs covered by Medicare RPM billing revenue
• Care coordinator FTE covered by Medicare RPM billing plus existing staffing reallocation
• Sustainability bridge to 2030 through mature Medicare billing plus commercial payer value-based contracts

State engagement timeline:

Q1-Q3 2026 stakeholder engagement window (now). Q3 2026-Q1 2027 state RFP procurement window. Q2 2027 implementation contracts. Rural hospitals that engage their state RHTP program during Q1-Q3 2026 have positioning advantage for RFP selection.

For RHTP funding mechanics and state engagement playbook, see our RHTP Funding Technology Guide and Rural Health Transformation Program pillar.
