Understanding Tenant Architecture in Software Systems

Multi-tenant architecture, also known as multi-tenancy, is a software architecture that allows many instances of an application to operate on the same cloud server, with the goal of serving numerous tenants at the same time. Users inside each client’s group are granted access to segregated software within a common space.

Instead of independently managing the upkeep and upgrades of various environments, this kind of architecture enables businesses to allocate a single infrastructure to many end users or organizations with groups of users.

Let’s first discuss what a tenant is:

What is a Tenant?

A tenant in software systems refers to an individual user, group of users, or entire organization that accesses and uses a shared software application or system. Each tenant operates independently, with its unique data and configurations, within a common infrastructure. This concept is central to multi-tenancy architecture, where multiple tenants share the same application while maintaining the privacy and security of their respective data. The design ensures that tenants can use the application as if they were the sole users, without interference from other tenants.

Tenants represent distinct entities within the system, each with its database or data partition, user roles, and application settings. Its separation is crucial for maintaining data integrity and security, ensuring each tenant’s data remains isolated and protected.

In a multi-tenant system, software resources are shared, but the tenant experience is individualized, allowing for efficient resource utilization while providing personalized configurations. This structure supports scalability and efficient management of multiple clients within a single application framework.

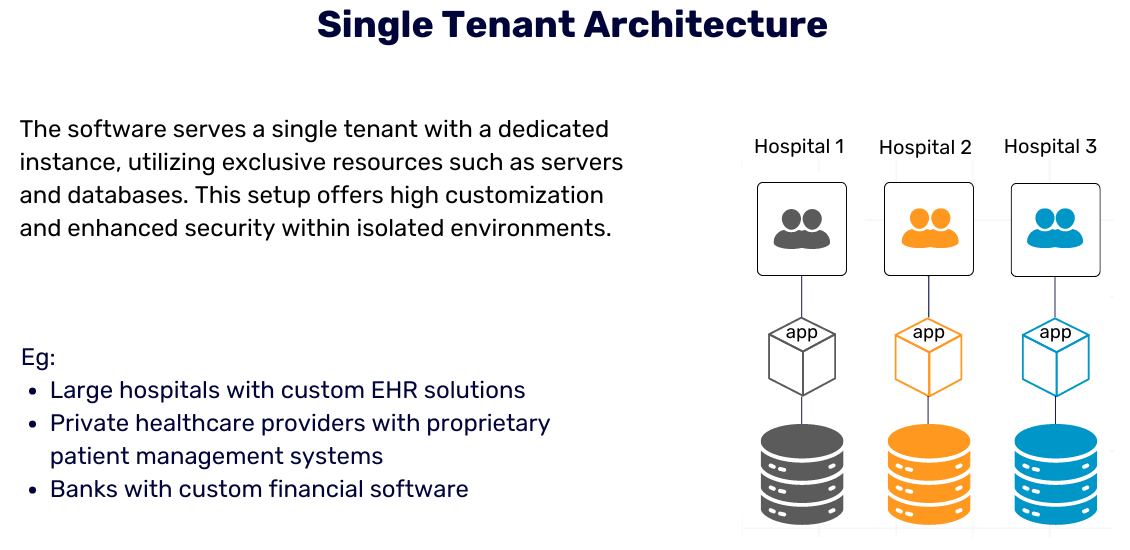

Single Tenant Architecture

Single-tenant architecture is a model where each client, or tenant, has a dedicated instance of the software application and its associated infrastructure. This setup means that each tenant’s data, customizations, and configurations are completely isolated from those of other tenants. This model is commonly used in scenarios where data privacy, security, and customization are of paramount importance, such as in finance, healthcare, and other regulated industries.

Key characteristics of single tenant setups include dedicated resources for each tenant, which ensures that performance and uptime are not affected by the activities of other tenants. Examples of single tenant architecture can be seen in certain cloud service offerings where an organization might choose to have its own instance of a software application like Salesforce or SAP. This setup allows for extensive customization to meet the specific needs of the tenant without impacting or being impacted by other users’ modifications.

The advantages of single tenant systems include high levels of data security and privacy, greater control over performance, and the ability to customize the software extensively to meet specific business requirements.

However, these benefits come with certain disadvantages, such as higher costs due to the need for dedicated resources and infrastructure. Additionally, maintenance and updates can be more complex and costly, as each instance needs to be managed separately, increasing the operational burden on IT teams.

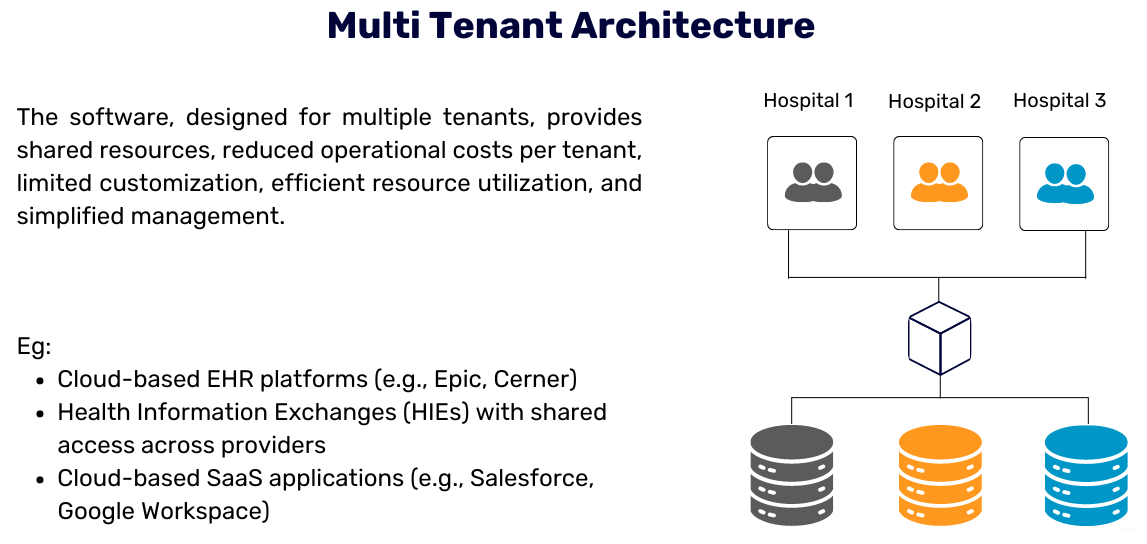

Multi-Tenant Architecture

The multi-tenant architecture allows multiple clients, or tenants, to share a single instance of a software application and its infrastructure. This model serves tenants using the same resources while keeping each tenant’s data separate and secure. It is widely used in cloud computing and SaaS due to its resource efficiency and cost savings.

Key features include shared resources, centralized maintenance, and scalability. Unlike single-tenant architecture, which dedicates an instance to each client, multi-tenant systems serve all tenants on a single instance. It simplifies updates and maintenance, reduces operational complexity, and lowers costs. Resources are efficiently allocated among tenants, ensuring optimal performance and data security.

Examples of multi-tenant systems include cloud-based EHR systems like Cerner and Epic. These platforms cater to diverse users, offering scalable and cost-effective solutions.

Approaches for Multi-Tenancy

Different approaches to implementing multi-tenancy include isolated, shared, and hybrid models. In the isolated model, each tenant has a separate instance of the application, ensuring strong data separation but at a higher cost. The shared model has multiple tenants sharing the same instance, which is more cost-effective but requires robust mechanisms for data isolation. The hybrid model combines elements of both, balancing cost and data security.

Strategies for ensuring data isolation and security in multi-tenancy involve encryption, strict access controls, and regular audits. Encryption ensures that data remains unreadable to unauthorized users. Access controls limit data access based on roles and permissions, ensuring only authorized users can view or modify data. Regular audits help identify and address security vulnerabilities, maintaining the integrity and confidentiality of tenant data.

In specific sectors, like EHRs and HIEs, multi-tenancy is particularly useful. For EHRs, multi-tenancy allows healthcare providers to share infrastructure while keeping patient data isolated and secure. HIEs benefit from multi-tenancy by enabling different healthcare organizations to exchange information efficiently, improving patient care coordination while maintaining data privacy and security.

Benefits of Multi-Tenancy

Multi-tenancy offers significant benefits in terms of cost efficiency and resource optimization. By allowing multiple clients to share the same infrastructure, organizations can reduce their overall expenses related to hardware, software, and maintenance. Compared to single-tenant arrangements, this shared method is more cost-effective since it reduces redundancy and decreases expenses for both providers and consumers.

The impact on scalability and flexibility is also notable. Multi-tenant systems can easily accommodate growth by scaling resources up or down according to demand. This flexibility allows organizations to adapt quickly to changing needs without significant investment in additional infrastructure. As a result, multi-tenancy supports dynamic and scalable operations, making it suitable for a wide range of applications.

Limitations of Multi-Tenancy

Watch the video below to learn more about the limitations of Multi-Tenancy:
