Referral Loops in Epic EHR: How ServiceRequest, Task, Appointment, and SIU Fit Together

Referral management is one of the most underestimated challenges in healthcare IT. Every year, hospitals and health systems lose millions of dollars in revenue because referrals never convert into scheduled visits or billed encounters. In many cases, the problem is not intent but interoperability. The systems generating referrals and those managing appointments often speak different languages, leaving patients stranded and referrals unfulfilled.

Within Epic, this process relies on four critical data objects: Service Request, Task, Appointment, and SIU messages. Together, they form the backbone of how referrals are created, tracked, and completed. When these components are configured and connected correctly, they create a closed-loop workflow that ensures every referral leads to a completed visit. When they are not, the consequences ripple through operations, compliance, and revenue cycles.

Across multi-EHR environments, particularly where Epic coexists with systems like NextGen, broken referral loops can multiply quickly. Incomplete data mapping, delayed status updates, and missing scheduling messages make it difficult for care teams to know whether a referral has been accepted, scheduled, or completed. For health systems pursuing value-based care or pay-for-performance contracts, that gap translates into missed attribution and compliance penalties.

Closing the referral loop is not a technical luxury; it is a critical component of effective care. It is a compliance requirement, a patient safety necessity, and a revenue safeguard. Understanding how these components work within Epic and how they integrate with external systems is the first step toward building a reliable referral ecosystem.

I. Understanding the Referral Loop in Epic

A. What Happens When a Referral is Created

A referral in Epic begins with a ServiceRequest. This object captures the intent of the referring clinician, defining who the patient is, what service is being requested, and where that service should occur. It acts as the foundational record that links every downstream workflow—from task creation to appointment scheduling.

When a ServiceRequest is generated, Epic assigns ownership and routing rules through its referral work queue. The order typically includes metadata such as specialty, urgency, and the referring provider. This ensures that the receiving department, whether internal or external, can take action without losing the context of the patient’s care plan.

The next critical element is Task. Epic uses tasks to represent the actionable components of a referral, such as contacting the patient, scheduling an appointment, or verifying insurance. These tasks connect the referral’s clinical intent with operational follow-through. When tasks are not triggered or completed, referral loops fail, leading to missed visits and unclosed encounters.

B. Key FHIR Resources Supporting the Loop

Epic’s FHIR implementation supports three essential resources for referral workflows:

• Task – Tracks the progress of work items related to the referral, including follow-up, scheduling, and communication between departments.
• Appointment – Represents the scheduled service derived from the referral. It carries time, location, and provider details that close the loop operationally.
• Communication Request – Enables communication updates between systems, ensuring the referring provider is notified of any changes to the referral status.

Together, these resources help Epic maintain data consistency between its internal modules and external systems, reducing duplicate entries and ensuring transparency.

C. How Epic Extends HL7 v2 and FHIR

Epic’s interoperability strength lies in its hybrid use of HL7 v2 and FHIR. While FHIR structures the modern referral workflow, HL7 v2 remains essential for system-level event notifications and scheduling confirmations. Epic’s internal architecture utilizes Bridges to facilitate seamless translation between these protocols, ensuring backward compatibility with older systems and facilitating smoother integration with newer digital health platforms.

In practical terms, this means that a ServiceRequest in FHIR can trigger an SIU message in HL7 v2, which confirms scheduling events. For example, when a patient books or cancels an appointment, that update flows back into Epic and synchronizes the referral status. This blend of standards keeps referral loops intact even in multi-system environments.

II. HL7 SIU Messaging and Epic Scheduling

A. Anatomy of an SIU Message

The HL7 SIU (Scheduling Information Unsolicited) message is the backbone of scheduling interoperability within Epic. It communicates every critical scheduling event across systems—new appointments, updates, cancellations, and completions. Each SIU message carries specific event codes such as S12 (new appointment), S14 (modification), and S26 (cancellation). These codes ensure external systems can understand exactly what has changed without ambiguity.

Inside Epic, the SIU message contains segments such as PID (patient identifiers), PV1 (encounter details), SCH (scheduling information), and AIL/AIP (location and provider). Together, these elements form a precise record of how and when an appointment was created, modified, or concluded. When mapped correctly, SIU messages synchronize referral updates and confirm completion within the broader referral loop.

B. Epic’s Handling of SIU Across Modules

Epic processes SIU messages through its Bridges interface engine, which manages inbound and outbound scheduling data. This enables real-time synchronization between Epic modules, such as Epic Cadence, Epic Referrals, and Epic Care Everywhere, and external scheduling systems. When an SIU S12 event is received, Epic updates its appointment record, notifies the referral module, and marks the related ServiceRequest and Task as scheduled.

Outbound messages follow the same structure. When a patient reschedules or cancels an appointment, Epic emits an SIU S14 or S26 message to external partners, ensuring all connected systems remain consistent. This bidirectional communication closes data gaps and minimizes the need for manual reconciliation. Health systems that rely on this configuration experience fewer scheduling errors and faster referral cycle times.

C. Mapping SIU to FHIR

FHIR-based scheduling is increasingly common, but many organizations still rely on HL7 v2 for interoperability. Epic bridges this divide by mapping SIU messages to FHIR Appointment and Schedule resources. When an SIU event occurs, Epic translates it into the corresponding FHIR resource update, ensuring that downstream applications and analytics platforms remain aligned.
For example, an SIU S12 event becomes a FHIR Appointment.create operation, while an S14 triggers an Appointment.update. FHIR Subscriptions can then notify external systems that a change occurred. This structure enables care coordination platforms, analytics tools, and even mobile applications to stay informed in near real-time. The result is a referral loop that does not depend solely on human follow-up but on structured, event-driven automation.

III. Integrating NextGen Scheduling with Epic Referral Flows

A. Why Cross-EHR Scheduling Fails

Integrating Epic EHR and NextGen Health is one of the most common referral workflow challenges health systems face. Each platform maintains its own data structures, event codes, and scheduling logic, which often do not align one-to-one. A referral generated in NextGen may not automatically trigger a corresponding ServiceRequest in Epic EHR. This disconnect leads to duplicate records, lost referrals, and incomplete care documentation.

The issue becomes more complex when different departments or partner practices use separate EHRs. Manual updates, data lags, or inconsistent message formats make it nearly impossible to confirm whether a referral has been scheduled or completed. Without automation, staff are forced to rely on email or spreadsheets to reconcile appointments, increasing the risk of errors and compliance gaps.

B. Mapping and Syncing Data

A successful integration begins with a clean mapping between NextGen’s Referral and Appointment entities and Epic’s ServiceRequest and Task resources. The referral created in NextGen should populate the ServiceRequest in Epic, while the appointment confirmation in NextGen should update the related Task and Appointment status.

This synchronization is typically achieved through APIs and event-driven data exchanges. The integration engine or middleware listens for updates from NextGen, transforms them into Epic-compatible formats, and delivers them through FHIR or HL7 interfaces. Each update should trigger real-time notifications to maintain referral accuracy across systems. When executed correctly, this mapping eliminates duplicate work and ensures both clinical and operational teams see the same data.

C. Best Practices for Real-Time Integration

1. Automated Retries and Validation: Build automated retries for failed transactions and validate payloads before sending updates. This ensures that incomplete or malformed data never disrupts scheduling continuity.
2. Middleware for Harmonization: Use an API gateway or integration platform to normalize message formats. Middleware enables one-to-many transformations, ensuring that changes in one system do not disrupt downstream dependencies.
3. Comprehensive Monitoring: Implement dashboards that track referral lifecycle metrics across Epic and NextGen. Monitoring response times, SIU acknowledgments, and completion status provides early visibility into loop failures.

By following these practices, health systems can maintain a unified referral workflow across platforms. The goal is to eliminate silos so that a referral generated in one system seamlessly leads to an appointment in another, ensuring every patient is scheduled, seen, and accounted for.

IV. Closing the Loop: Attribution, Revenue, and Care Coordination

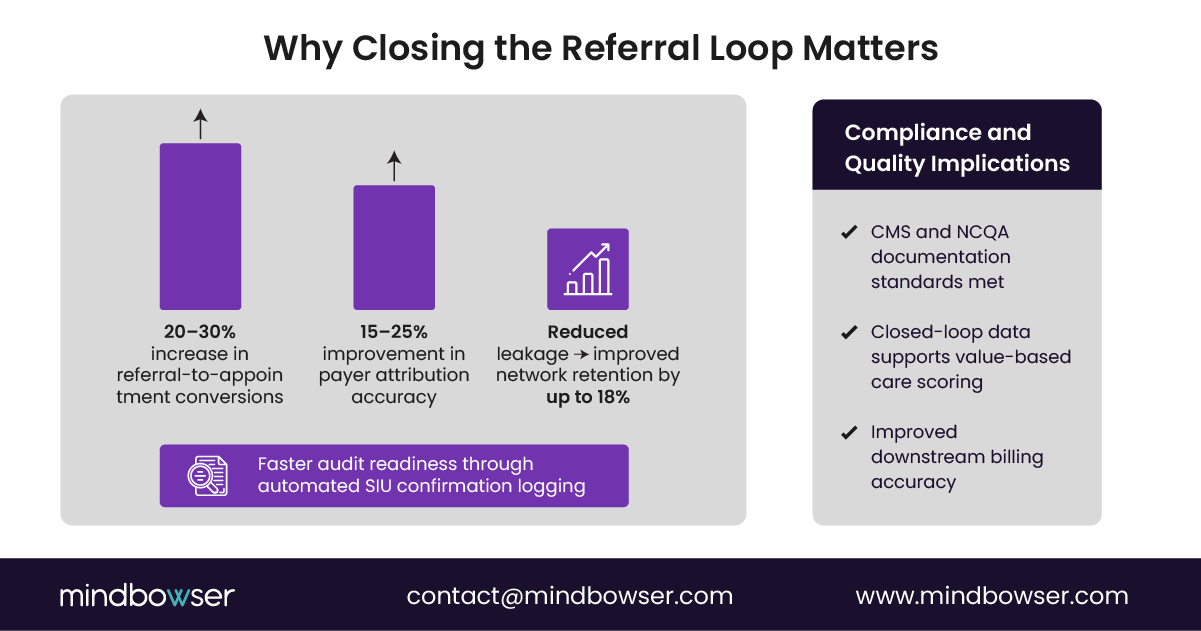

A. Why Loop Closure Matters

Closing the referral loop is more than a technical milestone. It is a measurable determinant of financial health, compliance, and quality of care. When referrals remain open or incomplete, health systems face three critical losses. First, they lose revenue because the referred visit never converts into a billable encounter. Second, they lose attribution, which directly affects reimbursement in value-based care programs. Third, they lose visibility, making it difficult for clinical teams to confirm that patients received necessary follow-up care.

A broken referral loop also has regulatory consequences. Payers and accrediting bodies such as CMS and NCQA increasingly require closed-loop tracking for network adequacy and quality reporting. Without documented confirmation that a referral was scheduled and completed, organizations risk compliance penalties and inaccurate quality scores.

B. Mechanisms to Close the Loop

In Epic, closing the referral loop involves synchronizing status updates between ServiceRequest, Task, and Appointment objects. When an appointment is scheduled and completed, Epic automatically updates the referral status, marking the loop as closed.

To enhance reliability, systems should leverage SIU confirmations from connected platforms, such as NextGen or Cerner. Each SIU message confirms an event—such as appointment scheduling, modification, or completion—and triggers Epic to update referral data accordingly. These confirmations also populate audit trails, ensuring accountability for every referral event.

Effective loop closure also depends on the use of automated workflows. Integrating referral completion checks into Epic’s Care Coordination module allows teams to track open referrals, follow up with patients, and document outcomes without manual data reconciliation. The result is a seamless referral process that supports both clinical continuity and administrative compliance.

C. Revenue and Compliance Impact

A fully closed referral loop improves both top-line and bottom-line performance. When every referral is tracked from initiation to completion, revenue leakage declines sharply. Health systems report improvements of 20 to 30 percent in referral-to-encounter conversion rates when automated workflows replace manual tracking.

From a compliance standpoint, complete referral documentation provides defensible proof of care coordination and communication between providers. This evidence supports audit readiness and strengthens payer relationships, especially under shared savings or population health contracts. Closed-loop referral data also enhances predictive analytics, enabling CFOs and population health teams to forecast downstream revenue more accurately.

In short, loop closure transforms referrals from administrative transactions into measurable assets. It ensures that every clinical action produces a financial and compliance outcome that the organization can track, defend, and optimize.

V. Technical Architecture Deep Dive

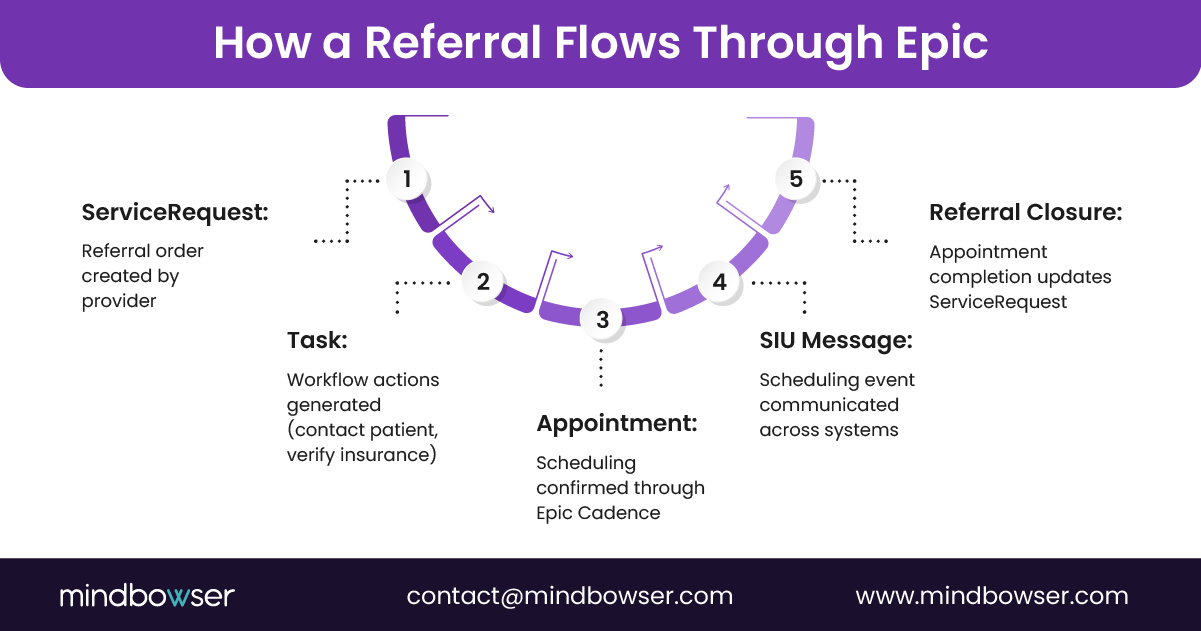

A. Epic Referral Flow: Step-by-Step

Understanding the referral loop architecture inside Epic begins with mapping how data moves from creation to completion. Each component—ServiceRequest, Task, Appointment, and SIU message—plays a specific role in maintaining continuity.

1. Service Request Initiation: The referral is created by the ordering clinician, establishing the intent and linking it to the patient and the target specialty. This object becomes the anchor for all subsequent actions.
2. Task Assignment: Epic generates one or more Tasks that represent actions required to complete the referral, such as contacting the patient or scheduling an appointment.
3. Appointment Scheduling: Once the patient is scheduled, the Appointment object captures key operational details like provider, location, and timing.
4. SIU Confirmation: The HL7 SIU message confirms that the appointment has been accepted or updated in connected systems. It feeds information back to Epic, ensuring that the ServiceRequest reflects the current status.
5. Referral Closure: After the appointment is completed, Epic automatically updates the ServiceRequest to a “completed” status, closing the loop and making the data available for reporting and billing.

This workflow creates a consistent data lineage, ensuring that every referral event is traceable and verifiable across systems.

B. Key API Endpoints and Data Flows

Epic exposes multiple FHIR APIs and HL7 interfaces that facilitate the synchronization of referrals. Common endpoints include:

• /ServiceRequest – For creating and querying referrals
• /Task – For monitoring assigned work and completion status
• /Appointment – For scheduling and confirmation updates
• /CommunicationRequest – For notifying referring providers of progress

In parallel, Epic’s Bridges interface engine handles HL7 traffic, translating SIU messages to FHIR events. This dual-protocol approach enables interoperability between Epic and legacy systems that still rely on the HL7 protocol. For external systems such as NextGen, these endpoints serve as the bridge between different scheduling and referral engines.

To ensure reliability, organizations often use middleware or integration engines like Mirth Connect or Redox to mediate between Epic and other EHRs. These tools perform data validation, handle retries, and maintain transaction logs that support audit trails and compliance reviews.

C. Common Integration Failures

Despite robust architecture, integration gaps still occur. The most frequent failures include:

1. Duplicate or Incomplete Referrals: Caused by race conditions or incomplete payloads during synchronization.
2. Appointment Cancellations Without Status Updates: When an external system fails to send an SIU S26 event, Epic may still mark the referral as active.
3. Delayed Cross-EHR Syncs: Network latency or inconsistent polling intervals can cause referrals to remain open longer than necessary.
4. Data Ownership Confusion: When multiple systems modify the same referral, conflicts can arise in determining the authoritative record.

Preventing these failures requires a strong data governance framework and continuous monitoring of message flows. Integrating error handling and automated reconciliation scripts ensures that referral states remain accurate, timely, and complete.

VI. Implementation Lessons from the Field

A. Common Pitfalls in Real Deployments

Referral loop integration projects often look straightforward during design but reveal complexities during implementation. One of the most common pitfalls is ambiguity regarding data ownership. When multiple systems, such as Epic, NextGen, or Cerner, can modify referral status, synchronization conflicts arise. Without a clearly defined system of record, teams struggle to determine which system holds the authoritative state of the referral.

Another frequent issue is incorrect FHIR mapping. Even minor misalignments in resource mapping—for example, linking a NextGen “referral reason” field to the wrong ServiceRequest element—can break workflow continuity. Poor version control and insufficient regression testing worsen the issue, especially when multiple integration vendors are involved.

Lastly, many organizations underestimate the importance of operational readiness. Technology alone cannot close the referral loop. Teams require clear ownership, user training, and a feedback mechanism that ensures failed transactions are identified and resolved promptly, preventing them from impacting patient care or revenue.

B. Real-World Case Learnings

In one multi-specialty health network project, a large obstetrics group used Epic for clinical workflows and a separate referral management tool for external scheduling. Initially, only partial referral updates were being received by Epic. The team introduced a structured workflow that mapped ServiceRequest creation to specific HL7 SIU triggers. As a result, the referral-to-appointment completion rate increased by 42 percent within three months.

Another large-scale referral integration project involved connecting multiple referral management platforms with Epic’s Referrals and Cadence modules. The implementation required a hybrid approach to handling HL7 v2 messages and FHIR endpoints to ensure complete interoperability. The project team learned that validation pipelines and mock data testing were critical before any production rollout. Once the validation framework was introduced, referral synchronization latency improved from several hours to a few minutes, significantly enhancing both data accuracy and care coordination.

In a care monitoring project for a midwestern hospital system, Mindbowser engineers leveraged FHIR Subscriptions to track appointment creation and updates. This eliminated the need for manual monitoring and improved compliance audit readiness. The project demonstrated that automation can transform referral management from a reactive process into a proactive compliance safeguard.

C. Operational Takeaways

1. Build Referral Dashboards: Create dashboards that track open, pending, and completed referrals. Visualizing data in real time helps teams identify workflow bottlenecks quickly.
2. Run Mock SIU Tests: Before production, simulate scheduling scenarios with S12, S14, and S26 messages to ensure Epic and partner systems interpret events correctly.
3. Maintain Integration Blueprints: Document every mapping, interface configuration, and error response pattern. Version-controlled blueprints save weeks during future system upgrades.
4. Audit Regularly: Establish a referral audit cadence that reviews referral-to-appointment conversions and reconciliation reports for accuracy and compliance.

The lesson from every implementation is consistent. Successful referral loop management is not only about connecting systems. It is about creating a resilient process that stays reliable even as systems, standards, and partners evolve.
