Mastering Microservices Monitoring with JavaMelody and Spring Boot

In the world of microservices, monitoring and performance optimization are crucial aspects of ensuring the health and reliability of your application. JavaMelody is a powerful monitoring tool that provides real-time insights into the performance of Java applications, including Spring Boot microservices. In this blog, we will explore how to integrate JavaMelody into a Spring Boot-based microservices architecture to gain valuable monitoring capabilities.

What is JavaMelody?

JavaMelody is an open-source library that offers monitoring and profiling capabilities for Java-based applications. It provides detailed metrics on various aspects of your application, such as request/response times, memory usage, SQL queries, and more. JavaMelody can be easily integrated into your application as a servlet filter, making it an ideal choice for monitoring microservices built on Spring Boot.

Setting up a Spring Boot Microservices Project

Before we begin integrating JavaMelody, let’s set up a basic Spring Boot microservices project. For this example, we’ll create two microservices:

  • UserService: Responsible for managing user data.
  • ProductService: Responsible for handling product-related operations.

1. Start by setting up a new Spring Boot project using your favourite IDE or the Spring Initializr.

2. Create the “UserService” and “HelloService” modules within the project.

3. Define the necessary entities, controllers, services, and repositories in each module to manage users and products.

4. Implement communication between microservices, either using RESTful APIs or message brokers like RabbitMQ.

Related read: Building RESTful APIs with Node.js and Angular

Check out What it Takes to Build a Successful App Here

Integrating JavaMelody into Spring Boot Microservices

Now that we have our microservices architecture in place, let’s integrate JavaMelody for monitoring and profiling purposes.

Step 1: Add JavaMelody Dependency

Add the JavaMelody dependency in each of the microservices `pom.xml` files:

<dependency>
<groupId>net.bull.javamelody</groupId>
<artifactId>javamelody-spring-boot-starter</artifactId>
<version>1.87.0</version> <!-- Replace with the latest version -->
</dependency>

Step 2: Configure JavaMelody

Next, we need to configure JavaMelody in each microservices `application.properties` file. You can customize the configuration based on your specific monitoring needs:

JavaMelody Configuration
javamelody.enabled=true
javamelody.storage-directory=/var/log/javamelody
javamelody.monitoring-path=/monitoring
javamelody.url-exclude-pattern=^/actuator/.*

The above configuration enables JavaMelody, sets the directory where monitoring data will be stored, and specifies the path where JavaMelody will expose its monitoring interface.

Step 3: Secure Monitoring Endpoint (Optional)

By default, the JavaMelody monitoring interface is accessible to anyone with the correct URL. For security reasons, you might want to restrict access to authorized personnel only. One way to do this is by adding Spring Security to your microservices and securing the `/monitoring` endpoint.

Step 4: Build and Run Microservices

Build and run each microservice as usual. You can access the JavaMelody monitoring interface by visiting the `/monitoring` endpoint of each microservice in your web browser.

Results

You can see that the metrics are ready to be collected:

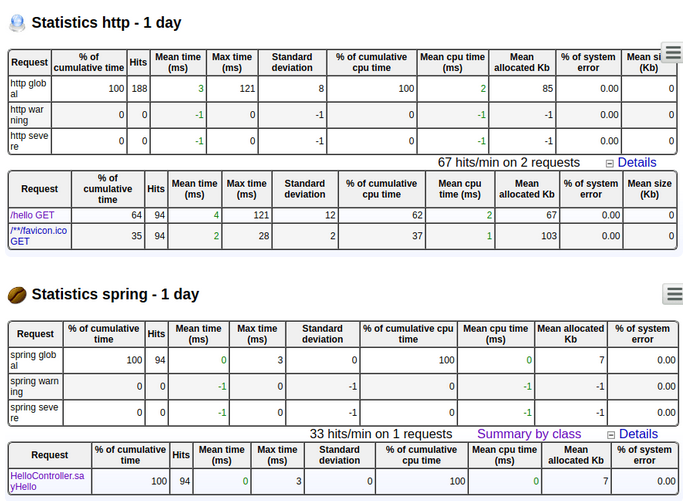

Statistics Spring boot

Fig. Detailed Statistics in Spring Dashboard

Now that JavaMelody is integrated into our Spring Boot microservices, let’s explore some of the key monitoring features it provides:

1. Dashboard Overview

The JavaMelody dashboard provides a high-level overview of the application’s performance. It displays essential metrics such as CPU usage, memory consumption, and request/response times. This allows you to quickly identify potential bottlenecks or anomalies.

2. Request/Response Monitoring

JavaMelody tracks the performance of each HTTP request made to your microservices. It provides detailed information about the request, including execution time, status code, and the URL invoked. This data helps you identify slow or failing endpoints and optimize their performance.

3. Memory Monitoring

Monitoring memory usage is critical to ensuring your microservices are not overloading the system. JavaMelody provides insights into heap memory, non-heap memory, and garbage collection activities. This allows you to detect memory leaks and optimize memory usage.

4. SQL Query Monitoring

For microservices that rely on databases, JavaMelody can be extremely helpful in analyzing SQL query performance. It logs all SQL queries executed by your application along with their execution times. This helps you identify poorly performing queries and optimize database interactions.

5. JVM Metrics

JavaMelody provides various JVM-related metrics, including thread counts, classloading activity, and garbage collection statistics. Monitoring these metrics helps you understand the JVM’s health and performance.

coma

Conclusion

In this blog, we explored the process of integrating JavaMelody into a Spring Boot-based microservices architecture. By doing so, we gained powerful monitoring capabilities that enable us to track the performance and health of our microservices in real time. JavaMelody’s extensive monitoring features, combined with Spring Boot’s flexibility, make it a valuable tool for maintaining high-performance microservices.

Remember, monitoring is not a one-time setup; it should be an ongoing process. Regularly review the JavaMelody dashboard, analyze the metrics, and use the insights gained to optimize and improve your microservices’ performance, leading to a more reliable and efficient application overall. Happy monitoring!
