Hospital EHR Integration for Devices: How to Streamline Onboarding and Workflows

III. Configure: Map, Route, and Validate Data Flows

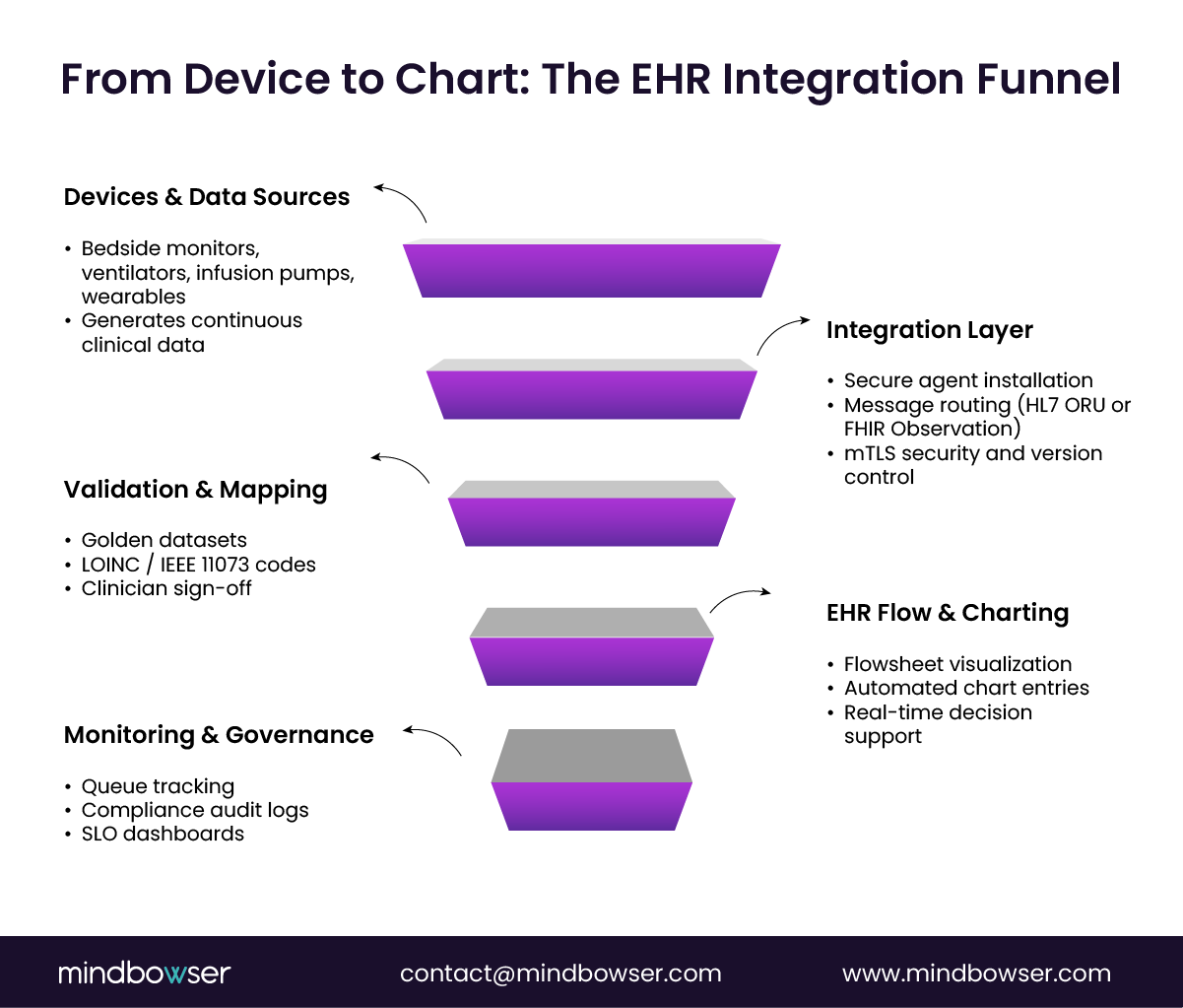

After deployment, configuration defines how device data travels from bedside hardware to the EHR’s clinical flowsheets. This step transforms raw data into structured, coded, and clinically meaningful information. Proper configuration ensures that every reading reaches the right patient record in the right unit with full traceability.

A. Environment Configuration

1. Define environment boundaries. Set up separate configurations for test, staging, and production environments to prevent data contamination.
2. Assign facility identifiers. Map each device agent to its respective facility, department, or unit ID for clear data segregation.
3. Configure patient and encounter linkage. Determine whether device data is associated using MRN or visit number. For dynamic devices such as transport monitors, ensure the patient association updates automatically at admission or discharge.
4. Validate routing tables. Confirm that interface engine rules or FHIR endpoints point to the correct EHR environment before sending any live data.

B. Delivery Route Strategy

1. Choose the transmission path. Select either HL7 ORU R01 messages through the interface engine or direct FHIR Observation writes, depending on the hospital’s architecture and EHR readiness.
2. Run a pilot route. Start with one delivery route for initial testing to minimize duplication and simplify debugging.
3. Document integration logic. Record transformation rules, message headers, and endpoint addresses in a configuration log for audit and reproducibility.
4. Secure the delivery pipeline. Apply encryption in transit and ensure acknowledgment messages are logged for every outbound record.

C. Mapping Workbook

1. Create the mapping master file. Build a workbook that lists every metric, its corresponding code (LOINC or IEEE 11073), measurement unit, and target flowsheet row.
2. Set update frequency and sampling rules. Define how often each parameter is sent, along with acceptable data precision or rounding.
3. Add validation notes. Include abbreviations, display names, and reference values to help clinicians verify data accuracy.
4. Apply version control. Use versioning to track changes in mappings and maintain compliance with hospital data governance policies.
5. Review with clinical stakeholders. Have clinical champions confirm that naming conventions and flowsheet placements align with hospital documentation standards.

Outcome

When configuration is done correctly, device data begins flowing through a predictable, monitored path that aligns with clinical workflows. Every metric has a defined destination, and every route has an audit trail. Hospitals that maintain a structured mapping workbook reduce troubleshooting time during go-live by more than half and improve chart accuracy across multiple departments.

IV. Validate: Test, Compare, and Sign Off

Validation is the proving ground of every hospital EHR device integration. This is where all configurations, mappings, and routing rules are tested against real data. The objective is simple: confirm that every device signal appears in the correct EHR flowsheet, with the right unit, timestamp, and rounding. Validation gives clinical teams the confidence that what they see on screen reflects what the device records at the bedside.

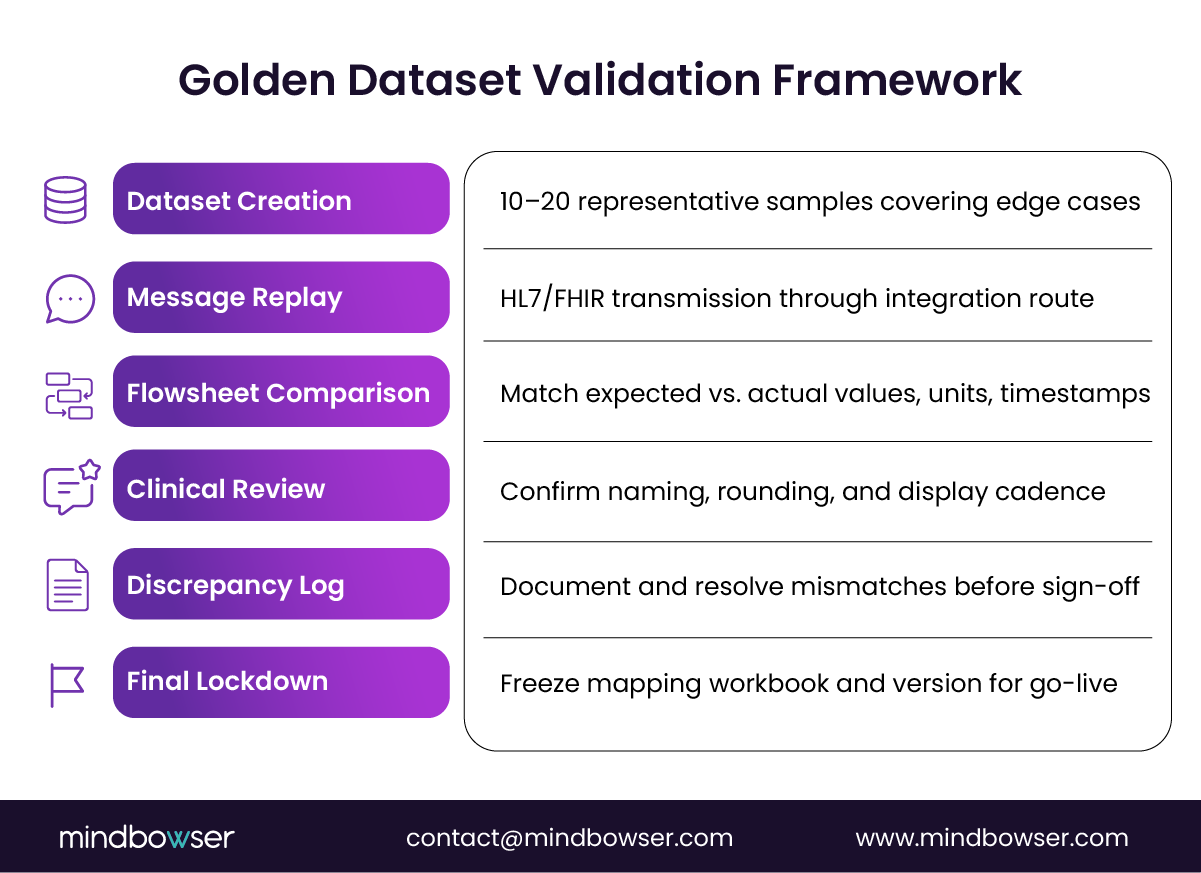

A. Golden Dataset Testing

1. Prepare representative datasets. Use 10 to 20 sample records that cover both common and edge cases such as zero readings, out-of-range values, and timestamp anomalies.
2. Replay data through the integration. Send the test messages through the configured route, capturing both transmitted and received versions for comparison.
3. Match expected results. Verify that each data point appears in the correct flowsheet row with accurate value, unit, and time alignment.
4. Document all discrepancies. Record mismatches in a validation log that tracks message ID, deviation type, and correction applied.

B. Clinician Review

1. Engage clinical champions. Invite clinicians from the affected departments to review how data displays in their workflows.
2. Confirm readability and relevance. Ensure naming conventions, abbreviations, and rounding methods match clinical expectations.
3. Validate cadence and update intervals. Check that readings appear at the right frequency for each device type such as every five seconds for vital monitors or hourly for infusion pumps.
4. Collect formal approval. Secure sign-off from the clinical lead before proceeding to live deployment.

C. Issue Resolution and Retesting

1. Correct identified errors. Address unit mismatches, timestamp drift, incorrect data routing, or label inconsistencies.
2. Re-run affected tests. Replay the corrected datasets to confirm that the issue is resolved and no new errors are introduced.
3. Lock configuration versions. Once validation passes, freeze the agent, mapping workbook, and routing configuration versions.
4. Archive validation artifacts. Store test data, logs, and sign-off records for compliance and future audits.

Outcome

When validation is complete, both the IT and clinical teams share confidence in the integration. Data flows are verified, mappings are locked, and the hospital has documented proof that its device-to-EHR connection meets safety, accuracy, and compliance standards. This stage ensures that when go-live happens, the integration performs as expected without surprises.

V. Cut-over: Go-Live with Confidence

Cut-over is the most visible moment in any hospital EHR device integration. It is where planning, validation, and technical setup translate into real-time patient data streaming into the EHR. The success of this step depends on coordination, monitoring, and a clear fallback plan. Every hospital should approach go-live as a controlled transition, not a risky leap.

A. Change Management

1. Schedule the go-live window. Coordinate timing with IT, clinical, and biomedical teams to minimize clinical disruption. Off-peak hours are often best for initial activation.
2. Communicate broadly. Notify all affected units about what to expect during cut-over, who to contact for issues, and how to report anomalies.
3. Confirm readiness checkpoints. Validate that certificates, endpoints, and routes are active and verified before switching to production.
4. Define rollback conditions. Identify the exact criteria that would trigger a rollback such as high message failure rate or delayed charting beyond the agreed threshold.

B. Monitoring and Rollback

1. Activate real-time monitoring. Track HL7 acknowledgment messages or FHIR HTTP response codes to confirm delivery success.
2. Watch for queue build-up. Monitor queue depth and error logs to detect latency or message backlog early.
3. Use dashboards for visibility. Display live message counts, response times, and success rates for immediate feedback during the go-live window.
4. Execute rollback safely. If needed, disable the route, drain the queue, and revert the integration agent to its previous version following the documented rollback plan.

C. Day-1 Validation

1. Spot-check data across departments. Review sample patients in the operating room, recovery, and intensive care units to confirm data appears in the correct flowsheets.
2. Compare against the golden dataset. Ensure production data aligns with test results within expected tolerances.
3. Verify clinician satisfaction. Gather feedback from nurses and physicians on display accuracy, update frequency, and usability.
4. Finalize go-live report. Document all findings, performance metrics, and sign-offs from IT and clinical teams.

Outcome

A well-managed cut-over builds confidence and momentum for full-scale deployment. When done right, hospitals experience clean transitions, minimal downtime, and immediate value realization from real-time data visibility. Teams can move quickly from pilot to full production with a clear sense of control and readiness.

VI. Support Model: Sustaining the Integration

Once the integration is live, the real work begins. Continuous monitoring, governance, and maintenance ensure that the system remains reliable and compliant as hospital operations evolve. A structured support model prevents silent failures, data drift, and inconsistent updates. It also establishes accountability across technical, clinical, and compliance teams.

A. Ownership and Governance

1. Assign integration ownership. Identify a dedicated integration manager responsible for queue monitoring, mapping updates, and vendor communication.
2. Define escalation paths. Create clear workflows for handling data errors or communication failures between device and EHR teams.
3. Maintain a change log. Record all configuration adjustments, certificate renewals, and mapping changes for audit traceability.
4. Conduct periodic reviews. Schedule quarterly performance and compliance reviews with IT, clinical, and security stakeholders.

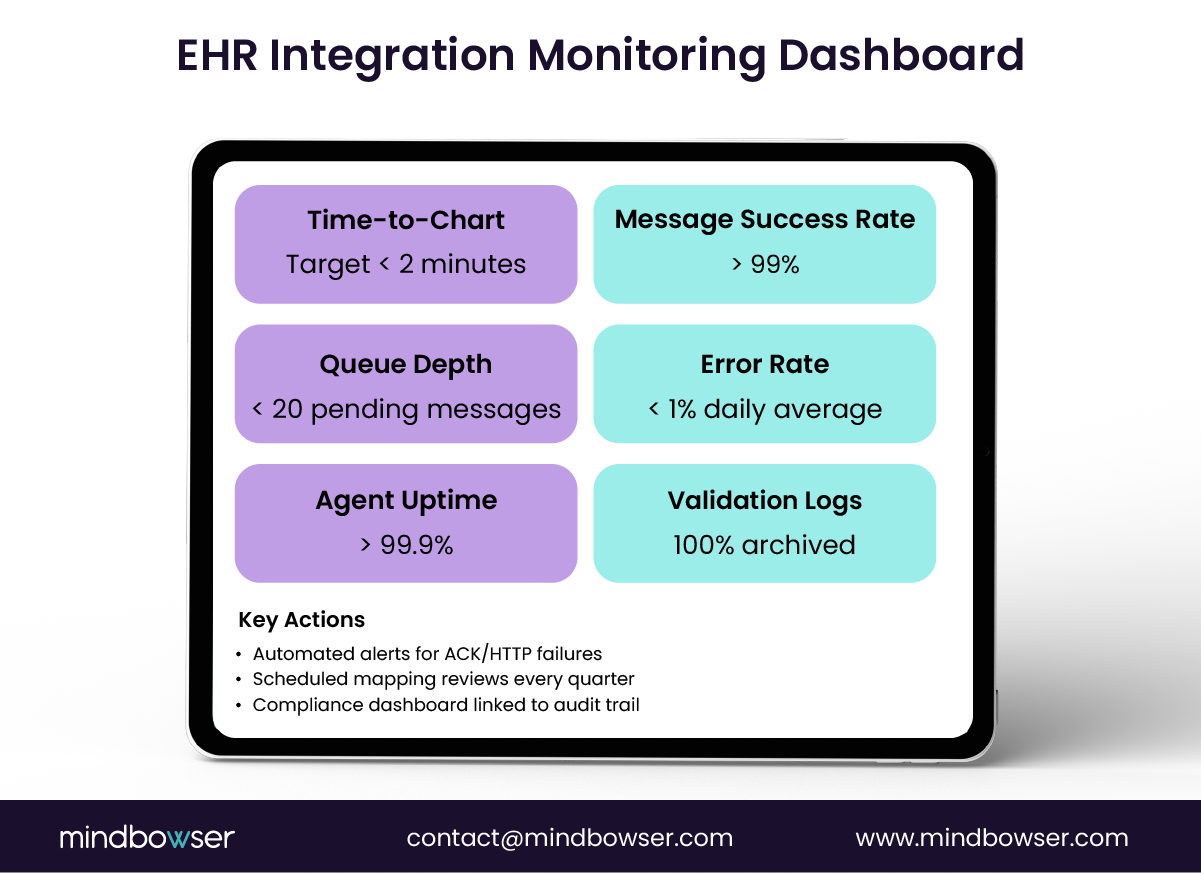

B. Service Level Objectives (SLOs)

1. Establish performance benchmarks. Define time-to-chart targets, acceptable error rates, and message delivery success thresholds.
2. Set alert thresholds. Configure proactive notifications for queue delays, missing acknowledgments, or response failures.
3. Track uptime metrics. Measure system availability and recovery times to maintain continuous patient data flow.
4. Publish compliance dashboards. Provide visibility into data reliability and security status for hospital leadership and auditors.

C. Release and Audit

1. Maintain an update cadence. Schedule regular agent and mapping updates with full regression testing before deployment.
2. Audit integration history. Keep structured logs of acknowledgment responses, HTTP codes, and mapping version numbers for compliance evidence.
3. Document incidents. Track and resolve integration incidents through a formal ticketing process to identify recurring patterns.
4. Revalidate after upgrades. Each EHR version change or device firmware update must trigger a validation cycle to prevent data mismatches.

Outcome

An effective support model transforms integration from a one-time project into an operational discipline. Hospitals that maintain clear ownership, measurable service objectives, and consistent auditing enjoy fewer disruptions, faster troubleshooting, and sustained clinician confidence. Over time, this reliability becomes a competitive advantage in patient safety and operational excellence.

How Mindbowser Can Help?

Mindbowser helps hospitals achieve seamless and compliant EHR integration for medical devices through a proven, field-tested methodology. Our approach combines healthcare domain expertise, interoperability engineering, and automation frameworks to deliver integrations that are secure, validated, and ready for clinical use from day one.

1. Prebuilt Integration Accelerators: Mindbowser’s accelerators reduce onboarding time by up to 50 percent. These include modular agents for HL7 and FHIR routes, built-in encryption, and data normalization workflows designed for Epic, Cerner, and Meditech systems.
2. Golden Dataset Validation Toolkit: We provide a structured testing toolkit with golden datasets that simulate real-world data and edge cases. This ensures accuracy before a single live message is transmitted to the EHR.
3. Mapping and Compliance Frameworks: Our mapping libraries include preverified LOINC and IEEE 11073 codes along with UCUM-compliant units. Each integration undergoes HIPAA and HITRUST-aligned security reviews, ensuring data safety and interoperability readiness.
4. Monitoring and Support Dashboards: Post-deployment, we deliver real-time dashboards for queue monitoring, message success tracking, and clinical validation. Our team works alongside hospital IT to establish long-term governance and version control.
5. End-to-End Project Governance: From site survey to go-live and beyond, Mindbowser provides a single team of integration engineers, clinical SMEs, and compliance leads who manage the entire lifecycle. Hospitals gain predictable timelines, transparent progress tracking, and complete documentation for audits and internal reviews.

By combining technical precision with clinical insight, Mindbowser ensures hospitals can connect devices to their EHRs faster and maintain those integrations safely at scale. Each engagement results in a standardized, repeatable integration blueprint that enhances reliability, compliance, and operational efficiency.
