CCM Care Plan Example: How to Build a Compliant, FHIR-Ready Model That Improves Outcomes and Revenue

Every chronic care management program lives or dies by the quality of its care plan. The Centers for Medicare & Medicaid Services (CMS) requires a structured, electronic plan that documents problems, medications, measurable goals, interventions, and accountability. It must be accessible to patients, updated monthly, and ready for audit.

Yet most hospitals and digital health platforms struggle to operationalize this simple requirement. Care plans often live in Word documents, buried notes, or isolated modules that do not sync across the EHR. When auditors arrive or care teams expand, these gaps surface in lost revenue, denied claims, and inconsistent follow-ups.

A compliant, FHIR-ready care plan changes that reality. It serves as a single source of truth for all stakeholders, from the physician to the care coordinator to the patient. It captures the “story” of the patient’s care between visits and ties directly to CMS billing codes and time tracking.

In this blog, we will explore what a complete CCM care plan example looks like, how to build it using HL7 MCC and USCDI standards, and how leading programs are aligning their EHR workflows to generate audit-proof documentation and measurable ROI.

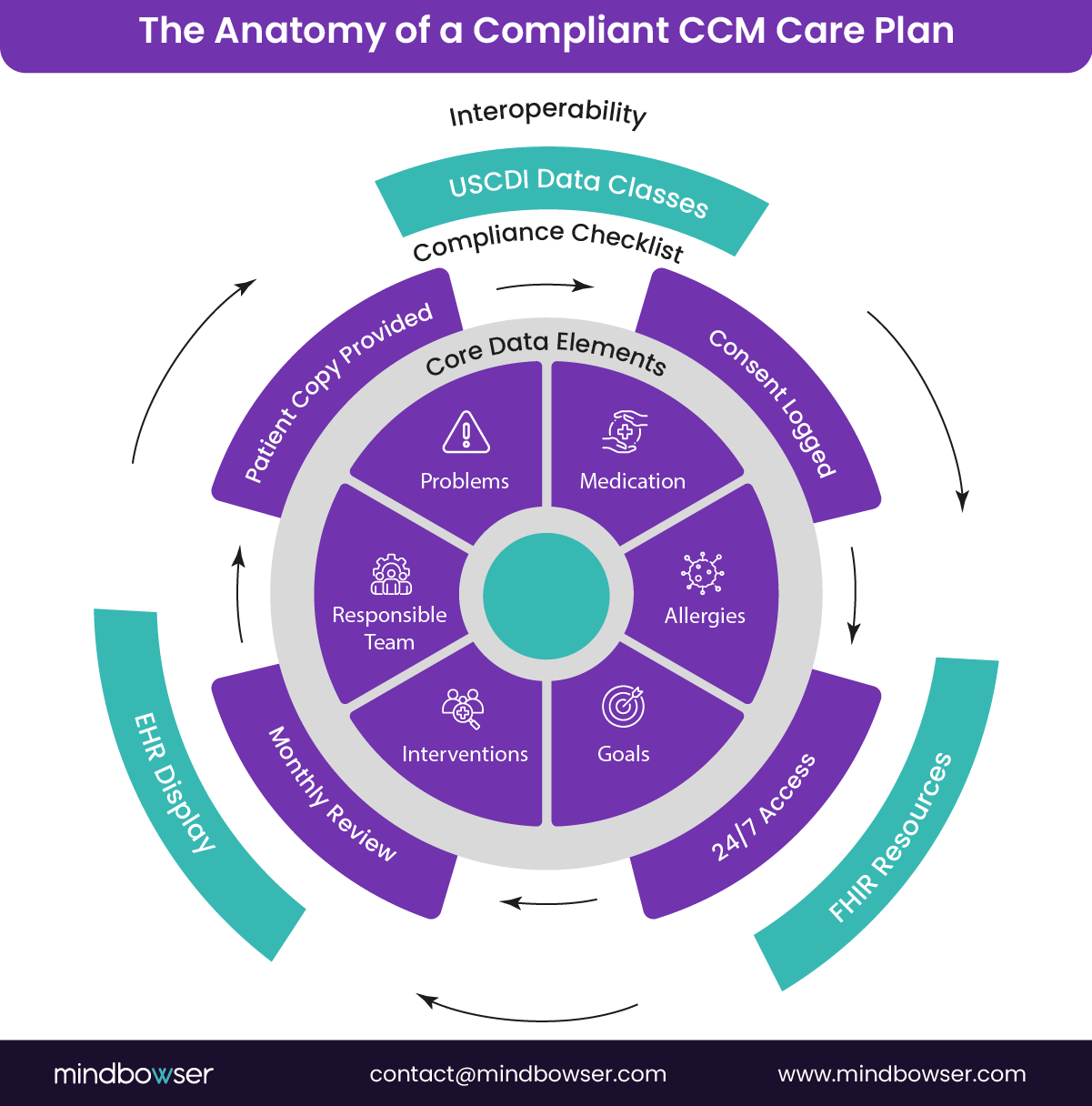

I. What “Good” Looks Like in a CCM Care Plan Example

A strong chronic care management (CCM) care plan must do two things at once. It must meet CMS documentation requirements to stay compliant, and it must guide real clinical coordination that improves outcomes. When both goals align, the plan becomes the engine of value-based care rather than a billing checklist.

A. CMS and MLN Requirements

1. Electronic and Patient-Centered:

The CMS Toolkit and MLN Fact Sheet require that each care plan be electronic, accessible to the patient, and continuously updated. The patient or caregiver must be able to view the plan, either through a portal or as a printed summary.

2. Core Data Elements:

A valid plan must include the patient’s problems, medications, allergies, measurable goals, interventions, and responsible team members. Each field should have a timestamp and author attribution.

3. Operational Evidence:

CMS auditors look for explicit documentation of consent, 24/7 clinical access, and time spent on non-face-to-face care coordination. A plan without time logs and contact notes may lead to denied reimbursement.

4. Monthly Review and Versioning:

Care plans must be reviewed, updated, and shared at least every 30 days. Each version should preserve prior history for audit tracking.

Related read: The Benefits of Chronic Care Management in 2025: Outcomes, Revenue, and Readiness for APCM

B. USCDI and HL7 Alignment

1. USCDI Data Classes:

The United States Core Data for Interoperability (USCDI) standard defines four classes relevant to CCM care plans: Health Concerns, Goals, Interventions, and Outcomes. Aligning to these data classes ensures that your plan can move across systems without losing meaning.

2. HL7 MCC eCare Plan Model:

The HL7 Multiple Chronic Conditions (MCC) eCare Plan is the most complete technical guide for care plans in FHIR format. It provides reusable resource templates for CarePlan, Goal, Condition, Observation, and ServiceRequest. Using this model creates a common language between your system and the EHR.

3. FHIR Interoperability:

A compliant plan should be represented as FHIR R4 resources, enabling read and write access to EHRs such as Epic and Cerner via SMART on FHIR interfaces. This ensures that updates from RPM devices, pharmacy systems, and SDOH referrals are automatically fed into the live plan.

C. Compliance Evidence That Stands Up in Audits

1. The Evidence Pack Concept:

A complete CCM Evidence Pack should include the care plan in PDF and FHIR JSON, a time log showing minutes per patient per month, patient consent records, and documentation of 24/7 access.

2. Audit-Ready Details:

Each goal and intervention must have measurable outcomes. Examples include improvements in blood pressure, adherence percentage, or SDOH resolution. Plans without defined targets are commonly flagged in CMS audits.

3. Attestation and Tracking:

Every monthly update should show clinician sign-off, time documentation, and version control. When these records are stored in an exportable format, audit preparation becomes a reporting task rather than a crisis.

Related read: CCM Compliance Automation: Why Hospitals and Startups Can No Longer Rely on Manual Workflows

II. Building the Plan That Clinicians Will Use Every Month

A CCM care plan succeeds only when clinicians find it useful in their daily workflow. The most common reason for failure is that the plan exists outside the system of record or requires duplicate documentation. The solution is to build it once, align it with FHIR objects, and make it visible where care teams already work.

A. The FHIR Object Set That Covers 80% of CCM

1. Core Resources:

The minimum viable FHIR objects for a CCM program include CarePlan, Goal, Condition, and Observation. These define what is being managed, what success looks like, and how progress is measured.

2. Actionable Interventions:

Use ServiceRequest or Task resources to capture interventions such as medication adjustments, nutrition referrals, or RPM device setup. Each should link back to the related goal for traceability.

3. Linkage and Provenance:

Every FHIR resource should carry a reference to the patient, the responsible clinician, and a timestamp. This allows any update or alert to be tied to a verifiable source and date.

B. EHR Surfaces That Keep Work in Flow

1. Epic Workflows:

Epic provides native Care Plan activities, Goal and Intervention templates, and Synopsis views for longitudinal tracking. Clinicians can add or update care plan items directly from encounters or phone notes without leaving the record.

2. Cerner Workflows:

Cerner’s MPage components and Dynamic Documentation modules can host structured care plan data. Message Center tasks can be triggered from the ServiceRequest object to notify coordinators about pending actions.

3. Patient Access:

Patients should be able to view a summary version of their plan through the portal or a printed report. CMS requires that the plan be accessible and understandable to the patient or caregiver.

4. SMART on FHIR Applications:

A SMART on FHIR app can act as the integration layer between your care management platform and the EHR. It reads Condition, Observation, and MedicationStatement data, composes the CarePlan, and writes updates back.

C. A Concrete CCM Care Plan Example

1. Patient Profile:

• Conditions: Type 2 Diabetes (E11.9) and Hypertension (I10)
• Risk Level: High, based on prior emergency visits and polypharmacy
• Social Determinants: Food insecurity flagged in USCDI SDOH fields

2. Goals (FHIR Goal):

• Reduce A1c from 8.6% to 7.5% within 120 days
• Maintain home blood pressure below 135/85 within 90 days
• Achieve medication adherence above 80% in 30 days

3. Interventions (ServiceRequest / Task):

• Enroll the patient in remote BP monitoring with readings twice daily
• Schedule nutrition counseling and SNAP application assistance
• Synchronize pharmacy fills and schedule a side-effect check-in at two weeks

4. Monitoring (Observation):

• Collect A1c results through lab interfaces
• Capture home BP readings through RPM devices
• Record PHQ-2 scores monthly to assess mood and motivation

5. Accountability:

• Primary Care Physician: Plan owner
• Nurse Coordinator: Daily monitoring and patient outreach
• Pharmacist: Medication adherence review
• Patient: Self-report and acknowledgement of goals

6. Patient Communication:

Provide a clear, plain-language version of the plan through the patient portal. Include following appointment dates, contact information, and steps for escalation if symptoms worsen.

III. Operating and Scaling CCM Around the Plan

A care plan becomes meaningful when it is tied to measurable outcomes and operational discipline. The best CCM programs run on predictable monthly rhythms, data-driven review cycles, and a clear financial model. These factors turn the plan from documentation into an engine for both patient improvement and organizational ROI.

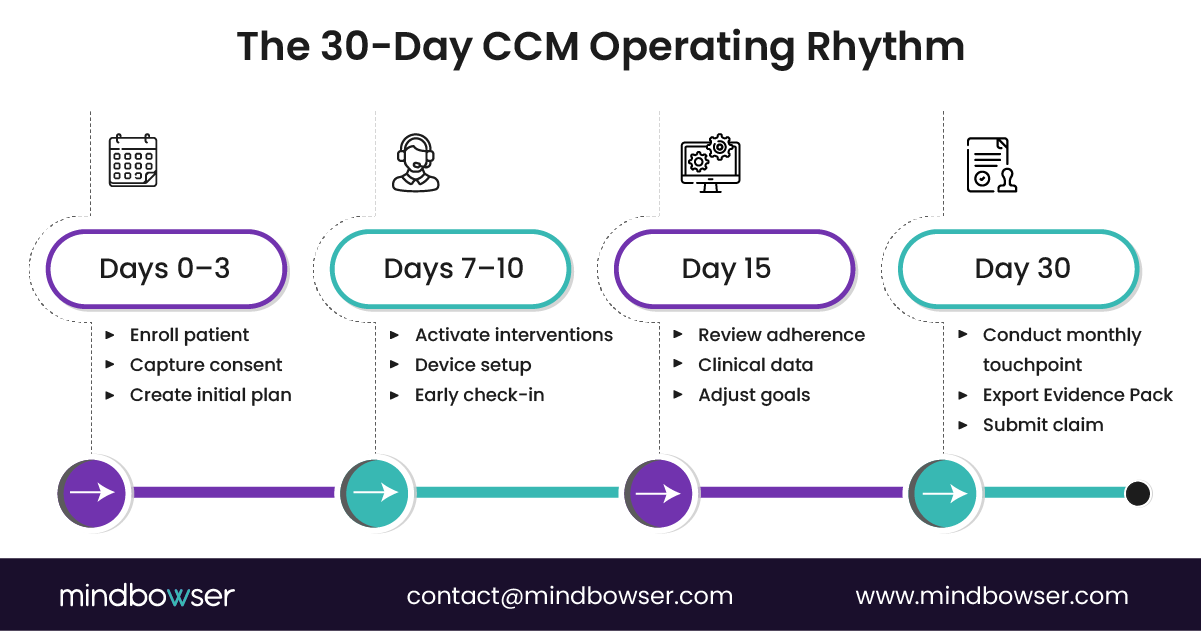

A. The 30-Day Operating Rhythm

1. Enrollment and Setup (Days 0–3):

Identify eligible patients based on chronic conditions and risk stratification. Capture consent and create the first version of the care plan using available EHR data. Assign the care coordinator and confirm patient communication preferences.

2. Early Interventions (Days 7–10):

Complete remote monitoring setup, synchronize medication fills, and initiate referrals for nutrition or behavioral support. Begin capturing daily Observations from connected devices.

3. Midpoint Review (Day 15):

Review adherence data, check for side effects, and adjust medication or education plans—document updates in the CarePlan and Goals resources.

4. Monthly Close (Day 30):

Conduct a patient check-in call, finalize time tracking, and export the Evidence Pack, including the plan, time log, and consent record. Submit claims for codes 99490 or 99439 based on minutes logged.

5. Continuous Monitoring:

Maintain alert thresholds in the system to flag abnormal readings or missed adherence targets. Use task automation to route alerts to the appropriate team member.

Related read: Building a Chronic Care Management Program: A 2025 Playbook for Hospitals and Digital Health Leaders

B. ROI and Risk Model for CTOs and CFOs

1. Key Levers:

Revenue and impact in CCM depend on three controllable factors: enrollment percentage, average billable minutes per patient, and payer mix. Optimizing these variables determines both sustainability and scalability.

2. Sensitivity Ranges:

• Enrollment Rate: 12 to 25% of eligible patients
• Billable Months per Patient: 7 to 11 annually
• Net Reimbursement: $55 to $85 per patient per month
• Prevented Readmissions: 6 to 18 per 1,000 patients annually

3. Audit Risk Management:

CMS audits typically focus on missing consent, incomplete time logs, and vague goals. Programs using structured Evidence Packs reduce audit exposure by 5 to 10% and protect annual margin by several hundred thousand dollars.

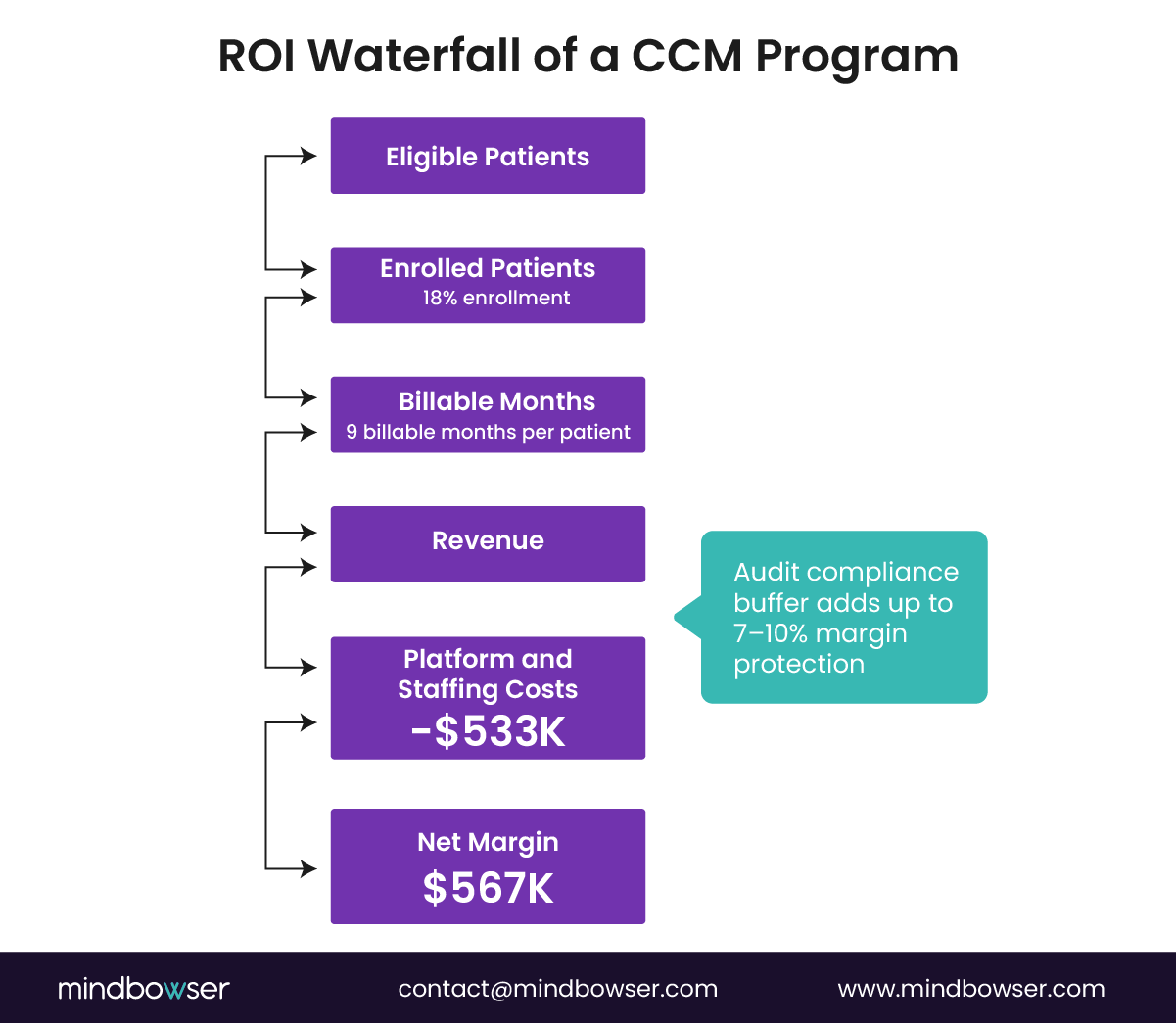

4. Financial Outcome Example (Base Case):

A practice managing 1,000 eligible patients with 18% enrollment and nine billable months per patient can achieve approximately $567,000 in net annual margin after accounting for staffing and technology costs.

C. Lessons from the Field

1. Remote Monitoring Integration:

Challenge: Nurses spent hours manually reviewing blood pressure logs.

Solution: Automated data ingestion from RPM devices updated the CarePlan and flagged readings above thresholds.

Outcome: Faster medication adjustments and fewer manual hours per patient.

2. Addressing Financial Barriers to Adherence:

Challenge: Cost-related nonadherence undermined care plan goals.

Solution: Integrated financial navigation workflows within ServiceRequest elements for copay and grant assistance.

Outcome: Higher refill rates and improved adherence metrics.

3. Closing Social Determinant Gaps:

Challenge: Unresolved social needs delayed progress on chronic goals.

Solution: Closed-loop community referrals linked to Task objects that reported completion status.

Outcome: Improved patient satisfaction and measurable reductions in care gaps.

4. Achieving Consistency Across Multiple EHR Systems:

Challenge: Multi-EHR environments created duplicate care plans.

Solution: FHIR-based CarePlan service synchronized data between Epic and Cerner.

Outcome: Unified view of patient goals across systems and simplified billing workflows.

IV. How Mindbowser Can Help

A compliant care plan is not just a documentation task. It is a data and workflow problem that requires the right engineering, interoperability, and automation strategy. Mindbowser helps hospitals and digital health teams operationalize CCM care plans that are both CMS-compliant and clinician-friendly.

A. Workflows That Shorten Time to Value

1. CarePlan AI: Automatically builds draft care plans from problems, medications, and lab results aligned to HL7 MCC and USCDI standards. It ensures every plan includes measurable goals and accountable team members before clinician review.
2. AI Medical Summary: Summarizes long clinical histories into usable care plan inputs. This reduces manual chart review time and allows care teams to start with a concise, accurate baseline.
3. HealthConnect CoPilot: Connects EHRs, RPM devices, and patient portals through FHIR APIs. It synchronizes Observations, Goals, and Tasks, ensuring that every update is reflected across systems in real time.

B. Implementation Patterns That Work

1. Epic and Cerner Embedding: Mindbowser integrates care plan workflows into existing EHR activities such as Goals, Synopsis, and Message Center. This approach eliminates duplicate documentation and keeps the workflow native for clinicians.
2. Role-Based Queues and Escalation Rules: Each task in the care plan is tied to a responsible role, ensuring that alerts and follow-ups reach the right person without overwhelming the care team.
3. Audit and Quality Controls: Automated scripts validate every plan before billing, confirming that consent, measurable goals, and access logs are present. This reduces denials and strengthens confidence in compliance.

C. Results in the First 30 Days

1. Working Prototype: A live CCM care plan example built inside your environment, connected to EHR data and patient monitoring devices.
2. ROI Baseline: A custom sensitivity model using your patient panel, enrollment rate, and payer mix to estimate annual revenue impact.
3. Governance Framework: Defined policies for plan review, versioning, and export to align with CMS and internal audit standards.
