Mastering Athena OMOP Vocabularies: The Foundation of Intelligent Healthcare Data Transformation

Healthcare data originates from various sources and employs multiple coding systems, including SNOMED, LOINC, RxNorm, ICD-10, and CPT. This makes it hard to bring everything together for analysis or reporting. Athena OMOP helps solve this problem by organizing all these codes into one standardized system. In this blog, we’ll explore how Athena works, its importance, and how it facilitates the easier understanding and utilization of healthcare data.

Enter Athena OMOP, the powerful vocabulary service at the heart of the OMOP Common Data Model. Designed to unify diverse coding standards, Athena enables intelligent healthcare data transformation through standardized vocabularies, domain classification, and automated routing logic. This blog explores how mastering Athena OMOP vocabularies forms the backbone of scalable, intelligent healthcare analytics.

The Vocabulary Challenge in Healthcare

Healthcare data encompasses thousands of different coding systems, including SNOMED CT for clinical concepts, LOINC for laboratory tests, RxNorm for medications, ICD-10 for diagnoses, and CPT for procedures. Each system serves specific purposes, but this diversity creates integration nightmares when trying to create unified analytical datasets.

Enter the Athena OMOP vocabulary service, the OMOP Collaborative’s comprehensive solution that harmonizes these disparate coding systems into a unified framework for healthcare analytics.

What is Athena?

Athena OMOP (athena.ohdsi.org) serves as the central vocabulary repository for the OMOP Common Data Model, containing over 6 million medical concepts from major healthcare code systems. More than just a lookup service, Athena provides the semantic intelligence that enables automated data transformation and integration.

Core Components of Athena OMOP

🔸Standardized Concepts: Each medical code is mapped to a standard OMOP concept with a unique concept_id.
🔸Domain Classification: Every concept is assigned to a domain (Condition, Drug, Procedure, etc)
🔸Relationship Mapping: Hierarchical and lateral relationships between concepts.
🔸Vocabulary Management: Versioning and updates aligned with source terminologies.

This rich metadata transforms static medical codes into intelligent routing instructions for automated ETL processes.

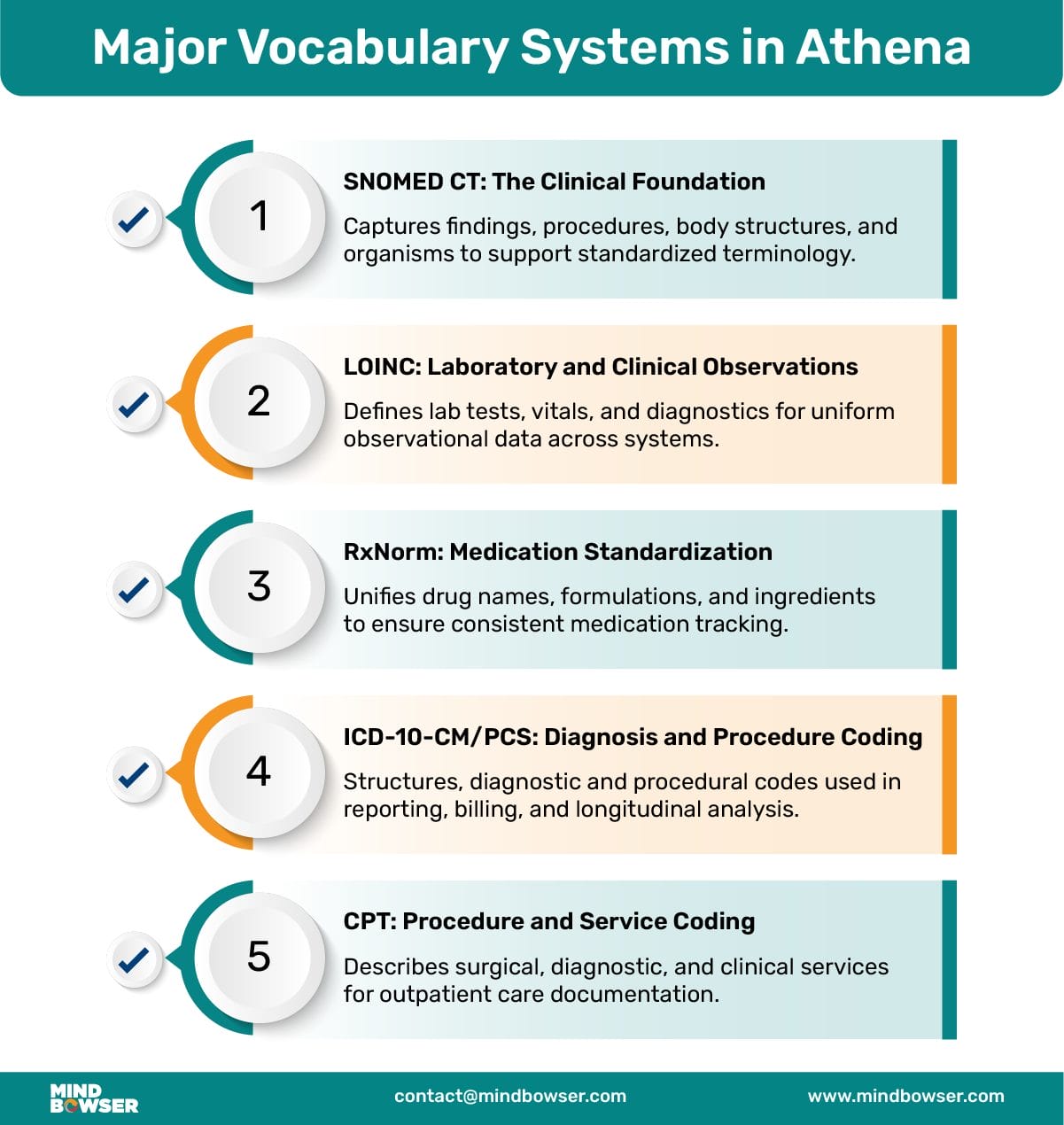

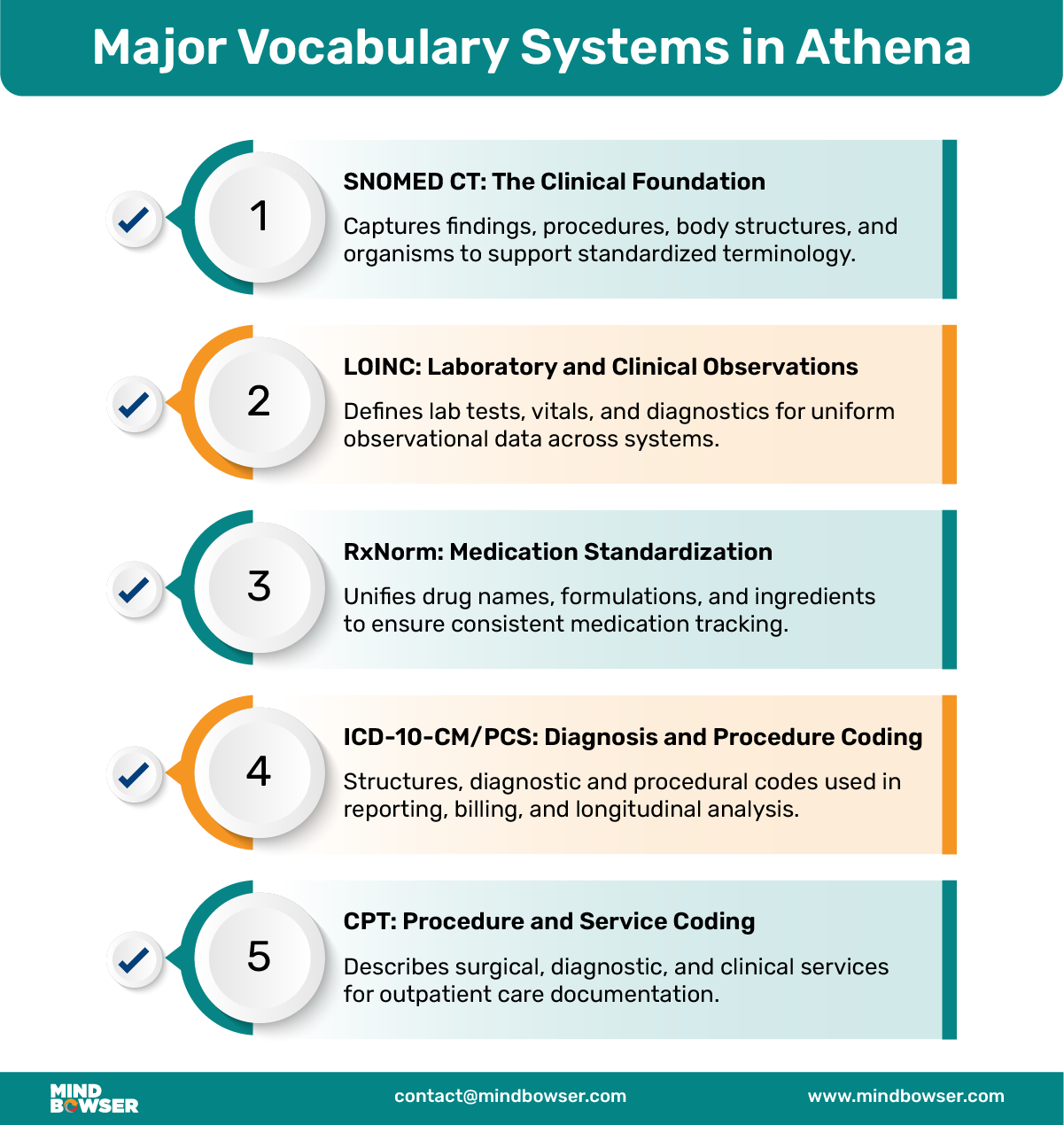

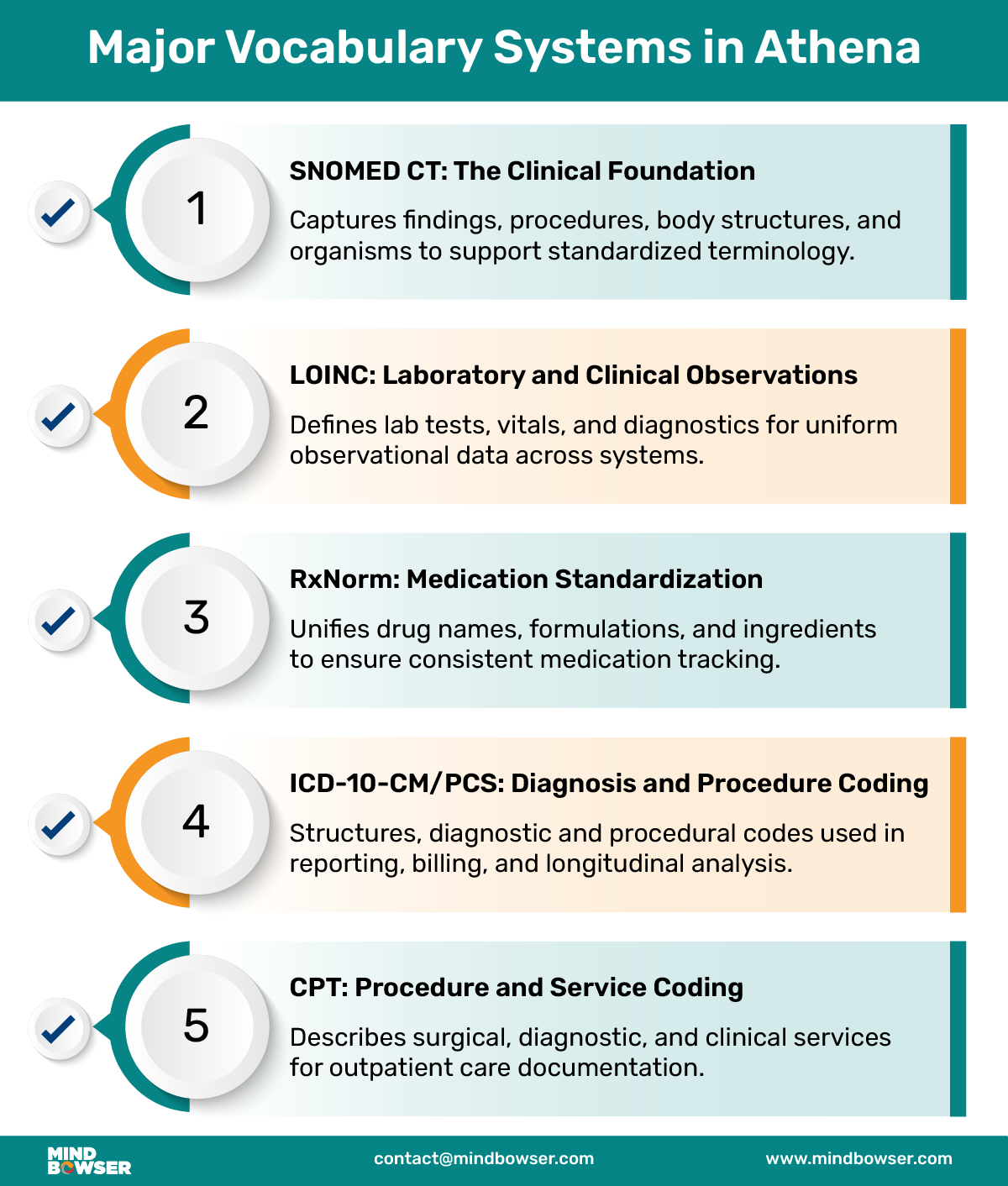

Vocabulary Systems in Athena

SNOMED CT: The Clinical Foundation

SNOMED CT provides the most comprehensive clinical terminology, covering:

🔸Clinical Findings: Symptoms, signs, disorders
🔸Procedures: Therapeutic and diagnostic interventions
🔸Observable Entities: Measurable clinical parameters
🔸Body Structures: Anatomical references
🔸Organisms: Pathogens and biological entities

Example SNOMED Concepts:

🔸Code: 185349003
🔸Name: “Encounter for check up (procedure)”
🔸Domain: “Visit”
🔸OMOP ID: 4024660
🔸Routes to: visit_occurrence table

LOINC: Laboratory and Clinical Observations

LOINC standardizes laboratory test names and clinical observations:

🔸Laboratory Tests: Chemistry, hematology, microbiology
🔸Vital Signs: Blood pressure, heart rate, temperature
🔸Clinical Assessments: Pain scores, functional status
🔸Diagnostic Studies: Radiology, pathology reports

Example LOINC Concepts:

🔸Code: 33747-0
🔸Name: “Glucose [Mass/volume] in Blood”
🔸Domain: “Measurement”
🔸OMOP ID: 3004501
🔸Routes to: measurement table

RxNorm: Medication Standardization

RxNorm provides normalized names for medications:

🔸Clinical Drugs: Specific formulations and strengths
🔸Ingredients: Active pharmaceutical components
🔸Brand Names: Commercial medication products
🔸Dose Forms: Tablets, injections, topical preparations

Example RxNorm Concepts:

🔸Code: 8896
🔸Name: “Aspirin”
🔸Domain: “Drug”
🔸OMOP ID: 1112807
🔸Routes To: drug_exposure table

ICD-10-CM/PCS: Diagnosis and Procedure Coding

ICD-10 provides standardized diagnosis and procedure codes:

🔸Clinical Modifications: Diagnosis codes for billing and epidemiology
🔸Procedure Coding: Surgical and therapeutic interventions
🔸External Causes: Injury and poisoning classifications
🔸Factors Influencing Health: Preventive care and risk factors

CPT: Procedure and Service Coding

Current Procedural Terminology covers:

🔸Surgical Procedures: Invasive therapeutic interventions
🔸Medical Services: Evaluation and management codes
🔸Diagnostic Procedures: Laboratory, radiology, pathology
🔸Supplies and Equipment: Medical devices and materials

Domain-Based Intelligence

Athena’s most powerful feature is domain classification, which enables intelligent routing without hard-coded mappings:

Domain Categories

🔸Visit: Healthcare encounters and service events
🔸Condition: Diseases, disorders, symptoms, clinical findings
🔸Drug: Medications, substances, pharmaceutical products
🔸Procedure: Therapeutic and diagnostic interventions
🔸Device: Medical equipment, implants, prosthetics
🔸Measurement: Laboratory tests, vital signs, assessments
🔸Observation: Social history, lifestyle, family history
🔸Provider: Healthcare professionals and specialties
🔸Care Site: Healthcare facilities and locations

Routing Logic

Each domain maps to specific OMOP CDM tables:

🔸Domain “Visit” → visit_occurrence table

🔸Domain “Condition” → condition_occurrence table

🔸Domain “Drug” → drug_exposure table

🔸Domain “Procedure” → procedure_occurrence table

🔸Domain “Measurement” → measurement table

🔸Domain “Observation” → observation table

🔸Domain “Device” → device_exposure table

This mapping enables automatic table routing without manual intervention.

Concept Relationships and Hierarchies

Athena maintains rich relationship networks between concepts:

Hierarchical Relationships

🔸Is a: Child-parent relationship (e.g., “Pneumonia” is a “Lung disease”)
🔸Subsumes: Parent-child relationships for concept grouping
🔸Part of: Anatomical and compositional relationships

Lateral Relationships

🔸Maps To: Cross-vocabulary equivalence
🔸Mapped From: Source-to-standard concept mapping
🔸Replaces: Concept versioning and deprecation

These relationships enable sophisticated analytics like:

🔸Concept Rollup: Grouping specific conditions into broader categories
🔸Temporal Analysis: Tracking concept usage over time
🔸Semantic Search: Finding related concepts across vocabularies

Standard vs. Source Concepts

Athena distinguishes between standard and source concepts:

Standard Concepts

🔸Analytical Use: Approved for research and analytics
🔸Cross-institutional: Consistent meaning across organizations
🔸Quality Assured: Validated for accuracy and completeness
🔸Version Stable: Maintained across vocabulary updates

Source Concepts

🔸Local Codes: Organization-specific identifiers
🔸Legacy Systems: Historical coding systems
🔸Billing Codes: Administrative rather than clinical concepts
🔸Deprecated Terms: Outdated or replaced concepts

This distinction ensures analytical consistency while preserving source data traceability.

Vocabulary Versioning and Updates

Healthcare terminologies evolve continuously, requiring systematic update management:

Quarterly Releases

Athena publishes quarterly vocabulary updates, including:

🔸New Concepts: Latest additions to source vocabularies
🔸Relationship Updates: Modified hierarchies and mappings
🔸Deprecations: Concepts marked as invalid or replaced
🔸Quality Improvements: Enhanced descriptions and classifications

Version Management Strategies

🔸Snapshot Approach: Freeze vocabulary version for study consistency
🔸Rolling Updates: Continuous integration of the latest terminologies
🔸Hybrid Model: Core concepts stable, periphery concepts updated

Impact on Analytics

Vocabulary changes affect:

🔸Concept Coverage: New codes enable analysis of emerging conditions
🔸Trending Analysis: Deprecated concepts require historical mapping
🔸Cross-institutional Studies: Version alignment across participating sites

Performance Optimization

Large-scale healthcare transformation requires optimized vocabulary handling:

Caching Strategies

🔸Complete Vocabulary: Pre-load all concepts for maximum speed
🔸Selective Caching: Cache frequently used concepts and vocabulary
🔸Lazy Loading: Load concepts on-demand with persistent storage
🔸Distributed Caching: Share concept lookups across compute nodes

Lookup Optimization

🔸Hash Indexes: O(1) concept lookups by code and vocabulary
🔸Bloom Filters: Fast negative lookups for non-existent concepts
🔸Prefix Trees: Efficient partial matching and autocomplete
🔸Compressed Storage: Minimize memory footprint for large vocabularies

Quality Assurance

Vocabulary-driven transformation requires robust quality controls:

Concept Validation

🔸Coverage Analysis: Percentage of source code successfully mapped
🔸Domain Verification: Ensure appropriate table routing for concept types
🔸Relationship Integrity: Validate hierarchical and lateral connections
🔸Standard Concept Compliance: Confirm use of approved analytical concepts

Quality Metrics

Leading implementations achieve:

🔸>95% concept coverage for core clinical vocabularies
🔸>99% domain classification accuracy for standard concepts
🔸<0.1% mapping errors requiring manual intervention
🔸100% standard concept compliance in analytical tables

Advanced Vocabulary Applications

Natural Language Processing

Athena OMOP concepts enable clinical NLP applications:

🔸Named Entity Recognition: Identify medical concepts in clinical text
🔸Concept Normalization: Map free text to standard vocabularies
🔸Semantic Similarity: Calculate concept relatedness for clustering
🔸Automated Coding: Suggest appropriate codes for clinical documentation

Machine Learning Features

Vocabulary metadata enriches ML models:

🔸Concept Embeddings: Vector representations of medical concepts
🔸Hierarchical Features: Parent-child relationships as model inputs
🔸Domain Clustering: Group similar concepts for feature engineering
🔸Temporal Patterns: Track concept usage trends over time

Clinical Decision Support

Real-time vocabulary lookups support:

🔸Drug Interaction Checking: Cross-reference medication concepts
🔸Allergy Alerts: Match substance exposures to known allergies
🔸Clinical Guidelines: Link conditions to evidence-based care protocols
🔸Quality Measures: Map clinical activities to performance indicators

Implementation Best Practices

Vocabulary Selection

Choose vocabulary based on:

🔸Data Sources: Match available coding systems in the source data
🔸Research Needs: Ensure coverage for intended analytical use cases
🔸Institutional Standards: Align with organizational coding practices
🔸Regulatory Requirements: Include mandated vocabularies for compliance

Update Strategies

🔸Testing Frameworks: Validate vocabulary changes against historical data
🔸Impact Assessment: Analyze the effects of concept changes on existing analytics
🔸Communication Plans: Notify research teams of significant vocabulary updates
🔸Rollback Procedures: Maintain the ability to revert problematic vocabulary changes

Performance Monitoring

Track vocabulary system performance:

🔸Lookup Latency: Response times for concept resolution
🔸Cache Hit rates: Effectiveness of caching strategies
🔸Error Rates: Failed lookups requiring investigation
🔸Coverage Metrics: Percentage of source code successfully mapped

The Future of Athena OMOP and Healthcare Vocabularies

Emerging Standards

🔸FHIR Terminology Services: Real-time vocabulary APIs
🔸Federated Vocabularies: Distributed concept resolution across organizations
🔸AI-enhanced Mapping: Machine learning for concept relationship discovery
🔸Real-world Evidence Integration: Linking clinical concepts to outcomes data

Challenges and Opportunities

🔸Global Harmonization: Aligning vocabularies across international healthcare systems
🔸Precision Medicine: Expanding vocabularies for genomic and molecular concepts
🔸Social Determinants: Incorporating non-clinical factors affecting health
🔸Patient-generated Data: Vocabularies for wearable and home monitoring devices
