LOINC Device Integration: How to Map Device Measurements Cleanly to EHRs

When hospitals search for LOINC device integration, they are asking one question: how do we ensure device values are charted correctly? If blood pressure appears in the wrong row, the entire trust chain is compromised.

Codes are not just an IT detail. They drive interoperability, analytics, and bedside safety. Without consistent mapping, analysts spend hours remapping, clinicians question flowsheets, and quality measures suffer.

The goal is straightforward: to establish a repeatable process for selecting codes, maintain unit consistency, and publish them cleanly to HL7 or FHIR. That is how you move from one-off projects to a scalable pipeline.

I. LOINC Basics (Keep It Practical)

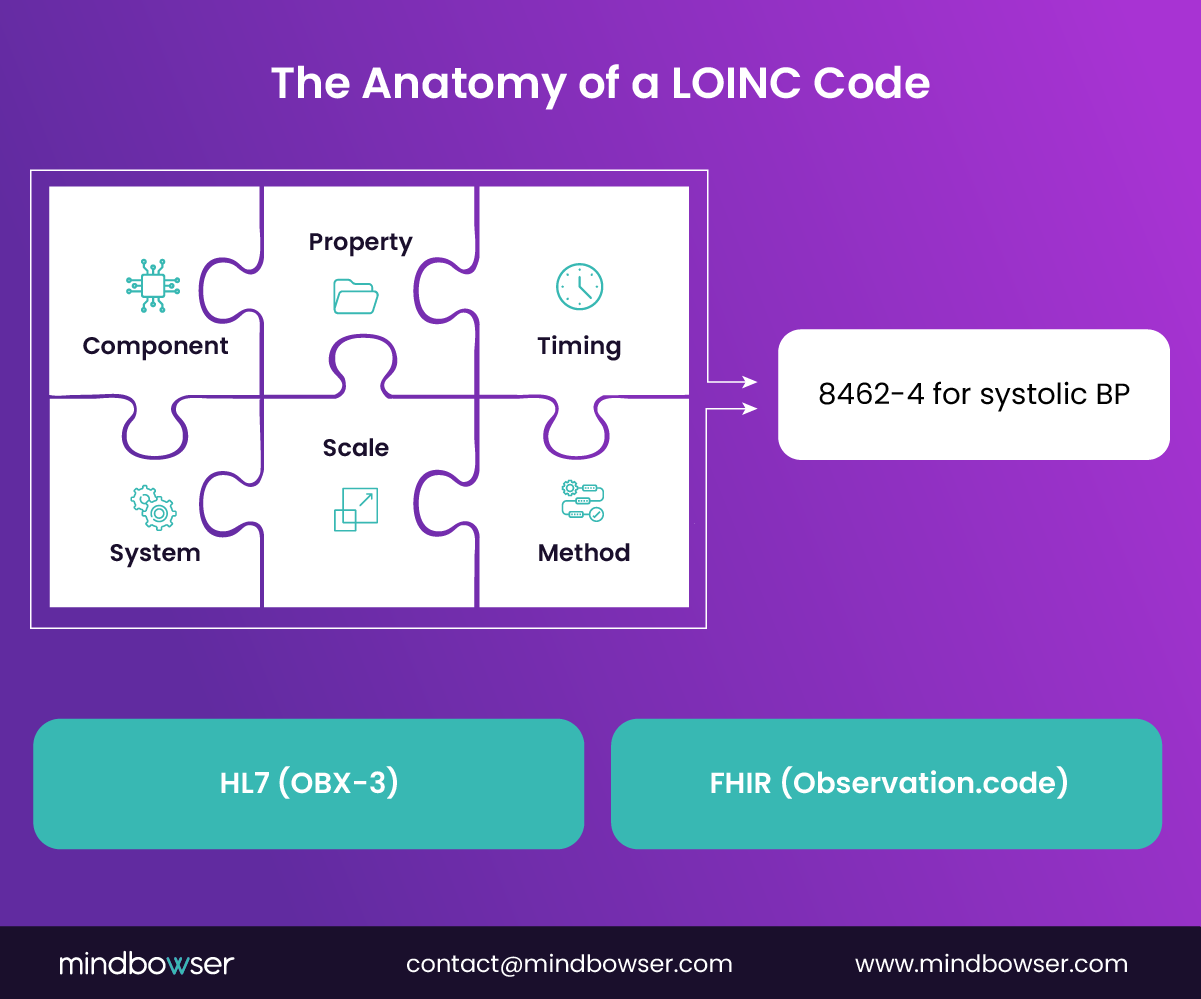

A. What A LOINC Code Represents

1. Component – the actual measurement or observation (e.g., systolic blood pressure).
2. Property – what is being measured (e.g., pressure, ratio).
3. Timing – whether the value is point-in-time or averaged.
4. System – the body system, specimen, or device context.
5. Scale – quantitative, ordinal, nominal, or narrative.
6. Method – optional description of how the reading was taken.

B. Where LOINC Sits In Messages

1. In HL7 V2, LOINC lives in OBX-3.
2. In FHIR, it is set in the Observation.code element.
3. Wrong or inconsistent codes send values to the wrong EHR flowsheet row.

C. UCUM For Units

1. Pair every LOINC with a UCUM unit.
2. Do not mix ad-hoc units like “beats/min” typed differently by vendors.
3. UCUM ensures analytics and quality measures work without silent errors.

II. IEEE 11073 + IHE PCD (When LOINC Is Missing)

A. Why IEEE 11073 Matters

1. Many bedside monitors and infusion devices generate metrics that lack LOINC coverage.
2. IEEE 11073 device nomenclature provides standardized codes for these signals.
3. Using IEEE 11073 keeps integrations aligned with international device standards instead of creating vendor-specific shortcuts.

B. IHE PCD Profiles For Device Data

1. Integrating the Healthcare Enterprise (IHE) created Patient Care Device (PCD) profiles to guide how device messages should look.
   Profiles such as DEC (Device Enterprise Communication) define consistent data exchange from devices to clinical systems.
2. These profiles are often paired with IEEE 11073 codes to ensure uniformity across device vendors.

C. Practical Approach To Fill Gaps

1. Start with IEEE 11073 as the primary fallback when a LOINC is missing.
2. Keep a local alias code in the workbook so your EHR can still map to the correct flowsheet row.
3. Submit a request to Regenstrief for a new LOINC code if the metric is clinically important.

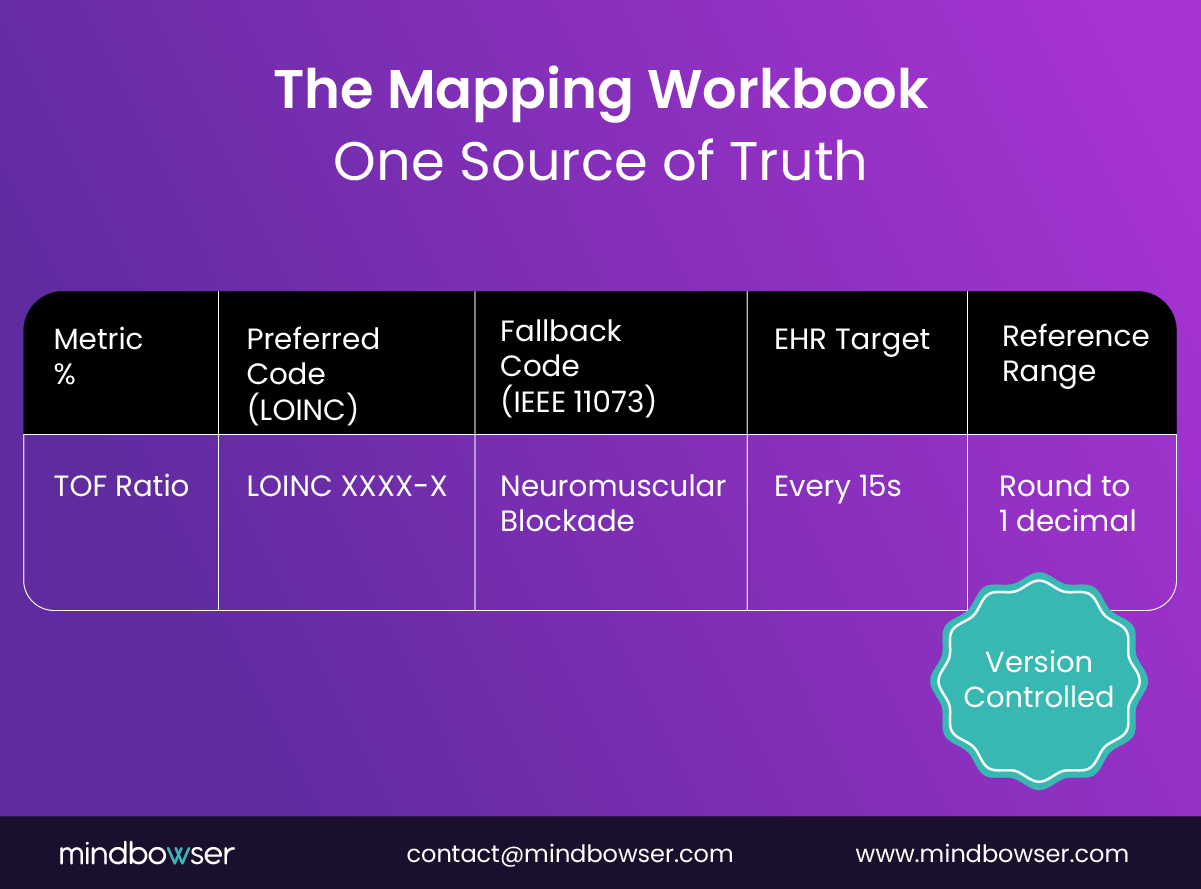

III. The Mapping Workbook (Single Source Of Truth)

A. Required Columns To Include

1. Metric – the signal or measurement name.
2. Description – plain language explanation.
3. UCUM Unit – the standardized unit tied to the metric.
4. Preferred Code (LOINC) – the chosen LOINC code when available.
5. Fallback Code (IEEE 11073 or Local) – when no LOINC exists.
6. EHR Target – flowsheet row or section where the value should land.
7. Sample Frequency – how often the value is expected.
8. Rounding Rules – significant digits or display expectations.
9. Reference Range and Flags – clinical thresholds, normal ranges, or alert markers.

B. Rules For Success

1. One metric equals one row to prevent ambiguity.
2. Every update must be versioned with a clear numbering scheme.
3. Maintain a change log for every code or unit adjustment.

C. How The Workbook Gets Used

1. HL7 routes pull code and unit mappings directly from this workbook.
2. FHIR routes use the same sheet to generate Observation and Device data.
3. Consistency comes from keeping both HL7 and FHIR aligned to the same source of truth.

IV. Neuromuscular Example (Anchor Use Case)

A. Metrics To Map

1. TOF Count – train of four count used during anesthesia.
2. TOF Ratio – the ratio of the fourth twitch to the first.
3. PTC – post-tetanic count, useful when TOF is absent.
4. Single Twitch – a single supramaximal stimulus response.

B. How To Map Each Metric

1. Assign a LOINC code when available; otherwise, fall back to IEEE 11073.
2. Attach a UCUM unit to prevent drift, such as % versus fraction for TOF ratio.
3. Document timing (effective time), flowsheet row, and rounding rules.
4. If a LOINC code is unclear, mark the IEEE term as “fallback” and keep a local alias to preserve continuity.

C. Validation With Clinicians

1. Clinicians review names, abbreviations, and expected value formats.
2. Side-by-side check: workbook row → HL7 or FHIR message → EHR display.
3. A formal sign-off document records who approved each metric and when.

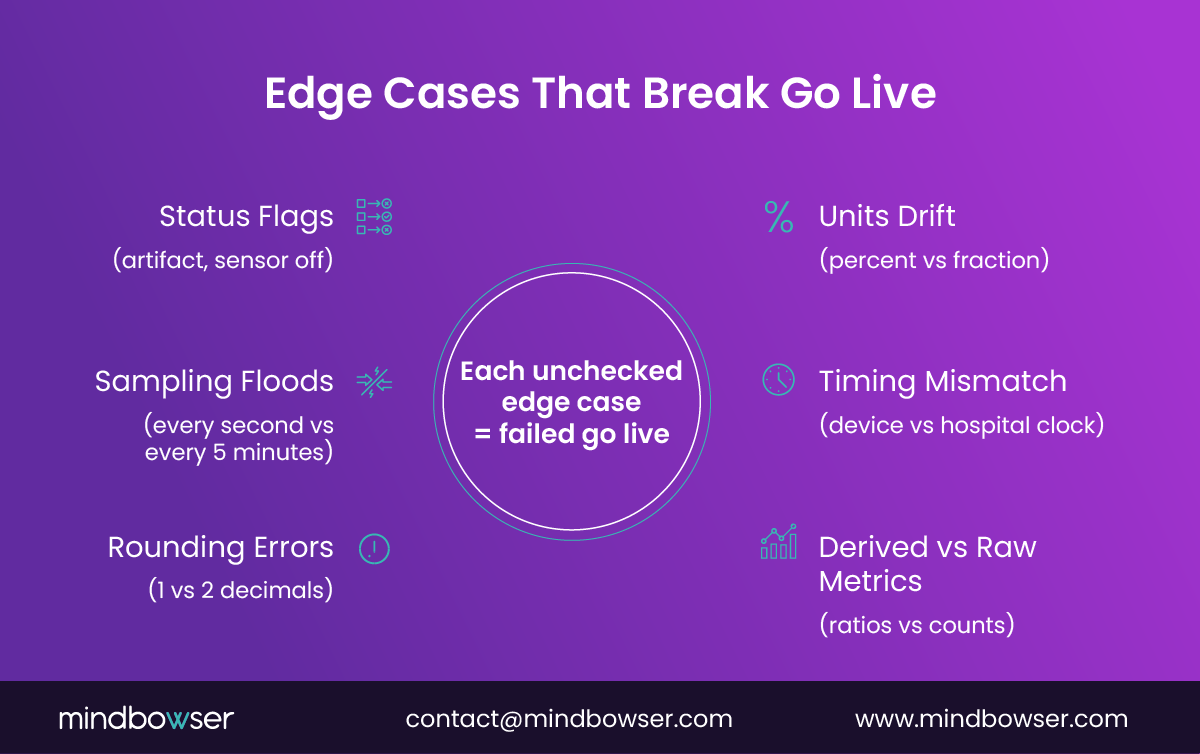

V. Edge Cases That Bite During Go Live

A. Units Drift

1. A common failure is when one system sends the TOF ratio as a fraction while another sends it as a percent.
2. Without UCUM enforcement, values are misinterpreted in the EHR.
3. The fix is to document and enforce one unit in the workbook.

B. Timing Mismatch

1. Device clocks may not align with encounter timelines.
2. This leads to observations posted to the wrong visit or out of sequence.
3. The integration should sync device timestamps to hospital time sources.

C. Derived Versus Raw Metrics

1. Ratios, indexes, or calculated values behave differently from raw counts.
2. Without clear labeling, clinicians confuse derived and raw signals.
3. The workbook should flag derived metrics separately.

D. Status And Quality Flags

1. Devices sometimes send values tagged as ‘artifact’, ‘disconnected’, or ‘sensor off’.
2. If ignored, these pollute analytics and clinician workflows.
3. Status flags must be mapped to EHR fields or filtered at ingestion.

E. Sampling Frequency

1. Some devices report values every second, which floods the flowsheet.
2. Others report in five minute intervals, which misses important trends.
3. Agree on cadence with clinicians and encode it in the mapping sheet.

F. Rounding And Significant Digits

1. Different vendors round values differently.
2. Inconsistent decimals confuse clinicians who track trends.
3. The workbook should state explicit rounding rules for each metric.

VI. Validation With Clinicians

A. Golden Dataset

1. Build a test set of 10 to 20 representative device records.
2. Each record should contain the expected values, units, and codes.
3. This dataset becomes the benchmark for integration testing.

B. Side By Side Review

1. Start with a row in the mapping workbook.
2. Generate a sample HL7 or FHIR message for that metric.
3. Confirm the value appears in the correct EHR flowsheet row.

C. Sign Off Documentation

1. Record the names of clinicians who reviewed and approved each metric.
2. Capture dates and notes for accountability.
3. Maintain a versioned approval log alongside the workbook.
