Comprehensive Guide to Cloud Networking in Kubernetes

Kubernetes has become the go-to solution for container orchestration. As organizations increasingly adopt cloud-native technologies, understanding the networking model in Kubernetes becomes essential. In this blog, we will explore the key concepts of cloud networking within Kubernetes, how it works, and why it is crucial for deploying scalable, secure, and highly available applications in the cloud.

What is Cloud Networking in Kubernetes?

Cloud networking in Kubernetes refers to how the various network components within a cluster communicate with each other across a cloud infrastructure. The Kubernetes networking model ensures seamless communication between containers, nodes, and external services, which is critical in a multi-cloud or hybrid-cloud environment.

In cloud environments like AWS, GCP, or Azure, Kubernetes clusters are typically deployed using managed services such as Amazon EKS, Google GKE, or Azure AKS, which offer a combination of cloud-native networking capabilities alongside Kubernetes’ networking features.

Related read: AWS Vs Azure Vs GCP: Finding The Right Cloud Computing Service For You

Key Concepts in Kubernetes Networking

To understand cloud networking in Kubernetes, it’s essential to familiarize yourself with the following concepts:

➡️ Pod Networking:

Pods in Kubernetes are the smallest deployable units and can contain one or more containers. In Kubernetes, every pod gets its IP address, and they can communicate with each other across nodes in the cluster using these IPs, regardless of where the pods are running.

➡️ Service Networking:

Services in Kubernetes are used to expose applications to other pods or external clients. A Kubernetes service creates an abstraction layer over pod networking, allowing pods to discover each other and establish reliable communication without needing to know the exact pod IPs.

➡️ Ingress and Egress:

🔹Ingress: This refers to incoming traffic that enters the cluster. Ingress controllers manage the routing of external HTTP/HTTPS traffic to services within the Kubernetes cluster.
🔹Egress: This is outgoing traffic from pods to external resources. Managing egress traffic is important for ensuring security and controlling data flows.

➡️ Network Policies:

Kubernetes allows you to define network policies that control the traffic between pods. These policies can restrict communication between pods, enhance security, and define rules for ingress and egress traffic.

➡️ Cloud Provider Integration:

Kubernetes clusters running in cloud environments integrate with the cloud provider’s networking services. This integration allows features like elastic load balancing, auto-scaling, private IP addresses, and DNS services.

Cloud-Native Networking Solutions

Several cloud-native networking solutions integrate with Kubernetes to provide advanced features:

🔹Calico: Calico is a networking and network security solution for containers. It provides network policies, and IP address management, and integrates with various cloud networking providers for secure, scalable connectivity.
🔹Flannel: Flannel is another network fabric for Kubernetes. It supports several backend options for network overlay, including VXLAN and host-gw, making it a flexible solution for pod-to-pod communication in cloud environments.
🔹Cilium: Built on eBPF (Extended Berkeley Packet Filter), Cilium provides high-performance networking with security features. It allows for layer 7 (application layer) visibility and security policies, critical in modern microservices-based architectures.

Challenges of Cloud Networking in Kubernetes

While Kubernetes offers a robust networking model, there are several challenges organizations face when deploying Kubernetes in cloud environments:

➡️ Multi-Cluster Networking: Connecting multiple Kubernetes clusters across different regions or cloud providers can be complex. Solutions like Istio or Linkerd are often used for service mesh and multi-cluster communication.

➡️ Scaling: As the number of nodes and pods increases, ensuring that networking performance remains consistent can be challenging. Cloud providers typically offer tools to scale networking resources dynamically, but it requires careful planning and monitoring.

➡️ Security: With microservices and dynamic workloads, securing network traffic becomes a priority. Kubernetes provides network policies, but securing cloud networking requires additional controls like encryption, identity management, and firewalls.

➡️ Cost Management: Cloud networking can incur costs, especially with services like load balancing, ingress controllers, and bandwidth usage. Proper monitoring and optimization are required to control these costs.

Best Practices for Cloud Networking in Kubernetes

To ensure optimal cloud networking in Kubernetes, here are some best practices:

1. Use Network Policies for Security: Implement Kubernetes network policies to restrict access between different pods and services. This helps in protecting sensitive applications and minimizing the attack surface.
2. Leverage Cloud Provider’s Native Networking Features: Use features like VPCs (Virtual Private Clouds), Cloud Load Balancers, and DNS services to improve the availability and security of your Kubernetes applications.
3. Monitor Network Traffic: Regularly monitor the network traffic within your Kubernetes cluster. Use tools like Prometheus, Grafana, and native cloud monitoring services to detect performance bottlenecks and security vulnerabilities.
4. Optimize Egress Traffic: Control egress traffic from your Kubernetes cluster to prevent unauthorized access to external services. Use private endpoints or direct connect options to reduce costs and increase security.
5. Automate Scaling: Configure auto-scaling for networking components like load balancers and ingress controllers to handle variable traffic loads efficiently.

Networking in Kubernetes

➡️ Pod-to-Pod Communication:

🔹Flat Network Model: Every pod gets its unique IP address, and Kubernetes ensures that any pod can communicate with any other pod within the cluster without Network Address Translation (NAT).
🔹CNI (Container Network Interface): Kubernetes uses plugins like Calico, Flannel, or Cilium to handle pod networking. These plugins implement the necessary networking for pod communication.

Key Points:

• Pods can communicate directly using their IPs.
• No NAT is needed within the cluster.
• Pods may be rescheduled and receive new IPs, so direct pod-to-pod communication can be unreliable without higher-level abstractions.

➡️ Service Networking:

🔹Service Object: Kubernetes introduces the concept of a Service, which provides a stable IP address and DNS name to expose one or more pods. Services allow for load-balancing traffic across the pods they represent.

Example: <service-name>.<namespace>.svc.cluster.local

🔹ClusterIP: The default type of service, accessible only within the cluster. It exposes the service on an internal IP.
🔹NodePort: A service type that opens a specific port on all nodes, forwarding traffic to the service’s pods.
🔹LoadBalancer: When used in cloud environments like AWS, GCP, or Azure, it provisions an external load balancer, forwarding traffic to the NodePort service.
🔹Headless Services: These services omit load balancing and simply return the IP addresses of the associated pods, useful for direct pod-to-pod communication (e.g., in stateful applications).

Key Points:

• Services provide stable endpoints for pods.
• Kubernetes Services handles load balancing internally.
• DNS is automatically created for each service.

➡️ Ingress Resources:

🔹Ingress: Ingress allows external HTTP/HTTPS traffic to reach services within the cluster. It provides L7 load balancing, SSL termination, and routing rules.
🔹Ingress requires an Ingress Controller, which can be implemented using tools like NGINX, Traefik, or AWS ALB.

Key Points:

• Ingress simplifies HTTP/S routing and SSL termination.
• It supports routing based on hostnames or paths.

➡️ Network Policies:

🔹Network Security: Kubernetes uses Network Policies to control the flow of traffic to and from pods, allowing admins to specify which pods can communicate with each other and which external networks they can access.
🔹Layer 3/4 Rules: These policies work on IP and port ranges to allow or deny traffic between pods or external IPs.

Key Points:

🔹Network Policies control traffic at the pod level, securing internal communications.
🔹CNI plugins must support Network Policies (e.g., Calico, Cilium).

➡️ DNS:

🔹Kubernetes clusters have an internal DNS server that automatically resolves Service names to their ClusterIP addresses.
🔹Each pod’s DNS search path is configured to allow short names to be resolved to fully qualified domain names (FQDN) within the cluster.

Key Points:

• DNS names are automatically created for services and pods.
• Internal DNS resolution simplifies service discovery.

➡️ External Communication:

🔹Egress: Kubernetes also allows pods to communicate outside the cluster. Pods can access external services via NAT using an Egress gateway or through the node’s IP.
🔹ExternalName Services: These services map internal requests to an external DNS name, allowing Kubernetes services to forward traffic outside the cluster.

Key Points:

• Egress handles external communication securely.
• ExternalName allows integration with services outside the Kubernetes cluster.

➡️ Load Balancing:

Kubernetes uses two types of load balancing:

🔹Internal (Service): Distributes traffic to pod backends within the cluster.
🔹External (Ingress/LoadBalancer Service): Uses external load balancers to distribute incoming traffic from the outside world.

➡️ Overlay vs. Underlay Networking:

🔹Overlay Networks: Network traffic between pods on different nodes is encapsulated, typically using protocols like VXLAN. This helps abstract the underlying physical network.
🔹Underlay Networks: Pods communicate over the actual physical network without encapsulation, relying on routing between nodes.

➡️ Kube-proxy:

🔹Kube-proxy: Manages networking rules on each node, ensuring proper routing of traffic to services. It updates iptables or ipvs rules to route traffic from services to the appropriate pod IPs.

Key Points:

• Kube-proxy manages service-to-pod traffic routing.
• It handles load balancing within the cluster.

Best Practices for Traffic Networking in Kubernetes

🔹Use Network Policies to secure pod-to-pod communication.
🔹Leverage Ingress Controllers to handle HTTP/S traffic.
🔹Deploy a CNI plugin that suits your network needs, especially if you require advanced networking features (e.g., Calico for network security or Cilium for service mesh integration).
🔹Ensure DNS resolution is reliable, especially for service discovery.
🔹Monitor and manage network performance to ensure scalability and reliability.

Use Case:

This URL is used for intra-cluster communication between pods. Pods within the cluster can use it to access the service without requiring external networking.

Notes:

🔹Ensure the service is accessible in the target namespace.
🔹The pod attempting to access the service must have network connectivity within the cluster.
🔹If DNS resolution is not working, verify the CoreDNS pod is running and correctly configured in your cluster.

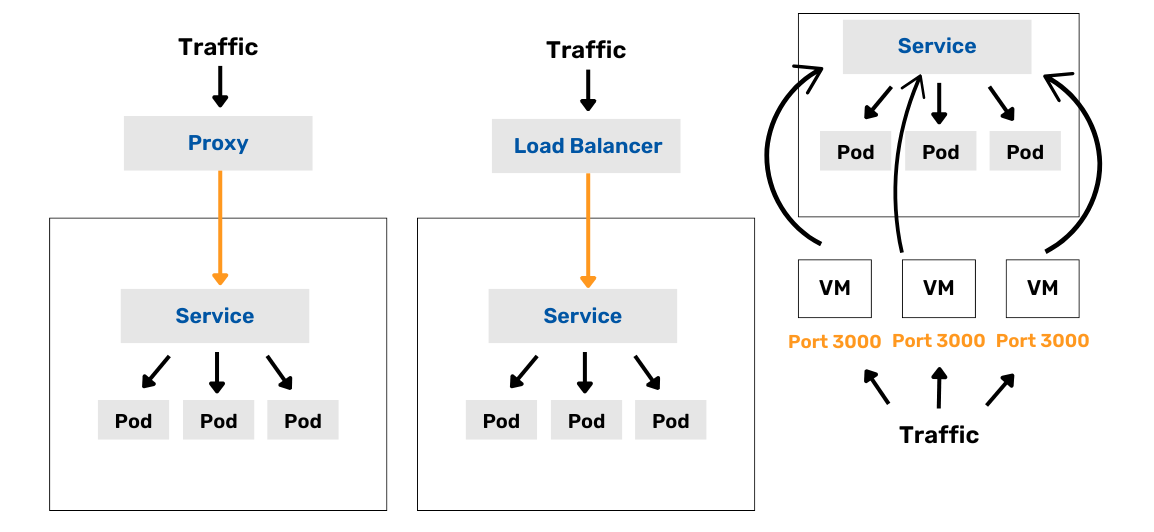

Types of Services in Kubernetes

➡️ ClusterIP (Default Service Type):

🔹Purpose: Exposes the service within the cluster only.
🔹Behavior:

• Creates a virtual IP (ClusterIP) accessible only by other pods in the same cluster.
• Traffic is routed to the pods using internal networking.

Use Cases:

🔹Internal Communication: For example, backend services accessed by frontend services.

• Microservices architecture where components talk internally.
• Reduces exposure to external traffic, enhancing security.

➡️ NodePort:

🔹Purpose: Makes the service accessible from outside the cluster by exposing a port on each cluster node.
🔹Behavior:

• Opens a specific port (default range: 30000–32767) on each node’s IP.
• External traffic to the node’s IP and NodePort is routed to the service.

Use Cases:

🔹Testing Purposes: To quickly expose a service during development.

• When direct access to nodes is acceptable and sufficient.
• Can be used as a fallback when LoadBalancer is unavailable.

➡️ LoadBalancer:

🔹Purpose: Exposes the service to the internet by provisioning an external load balancer.
🔹Behavior:

• Works in conjunction with cloud providers
• Creates an external load balancer that routes traffic to the NodePort service.

Use Cases:

🔹Public-facing Services: Exposing web apps or APIs to the internet.

• Requires automatic scaling and high availability via cloud-managed load balancers.

➡️ Headless Services:

🔹Purpose: Disables load balancing, allowing clients to directly communicate with individual pods.
🔹Behavior:

• Do not assign a ClusterIP.
• Returns the IP addresses of associated pods in DNS queries.

Use Cases:

🔹Stateful Applications: Databases like Cassandra or message brokers like Kafka.

• Service discovery mechanisms in distributed systems.
• Custom load balancing or direct pod access.

➡️ ExternalName:

🔹Purpose: Maps a service to an external DNS name.
🔹Behavior:

• Does not create a ClusterIP or select pods.
• Returns a CNAME record pointing to an external DNS.

Use Cases:

🔹Service Redirection: Redirecting to external services like APIs or databases outside the cluster.

• Useful for integrating external services with Kubernetes workloads.

➡️ Ingress (Not a Service Type, but Related)

🔹Purpose: Provides HTTP/HTTPS routing for services.
🔹Behavior:

• Acts as a reverse proxy, routing traffic to different services based on URL paths or domains.
• Works with ClusterIP or NodePort services as backend targets.

Use Cases:

• Hosting multiple apps (services) on the same domain using path-based or host-based routing.
• Managing SSL/TLS termination at the ingress level.
