Breaking Down Angular Change Detection System

Change detection is one of the core features that makes Angular a powerful and responsive framework for building dynamic web applications. It ensures that the application’s view remains in sync with the underlying data by detecting changes and updating the DOM accordingly.

In this blog post, we will explore the inner workings of change detection in Angular and how to make the most of it.

Understanding Change Detection

At the heart of every Angular application lies the concept of components. Components are self-contained units that encapsulate the application’s logic, data, and presentation. When the data within a component changes, Angular’s change detection mechanism automatically updates the view to reflect those changes.

Angular’s change detection can be compared to a heartbeat that continuously monitors the application’s state. Whenever a change occurs, Angular detects it and performs the necessary updates to keep the user interface consistent. This automatic process greatly simplifies the development of dynamic web applications.

How Change Detection Works

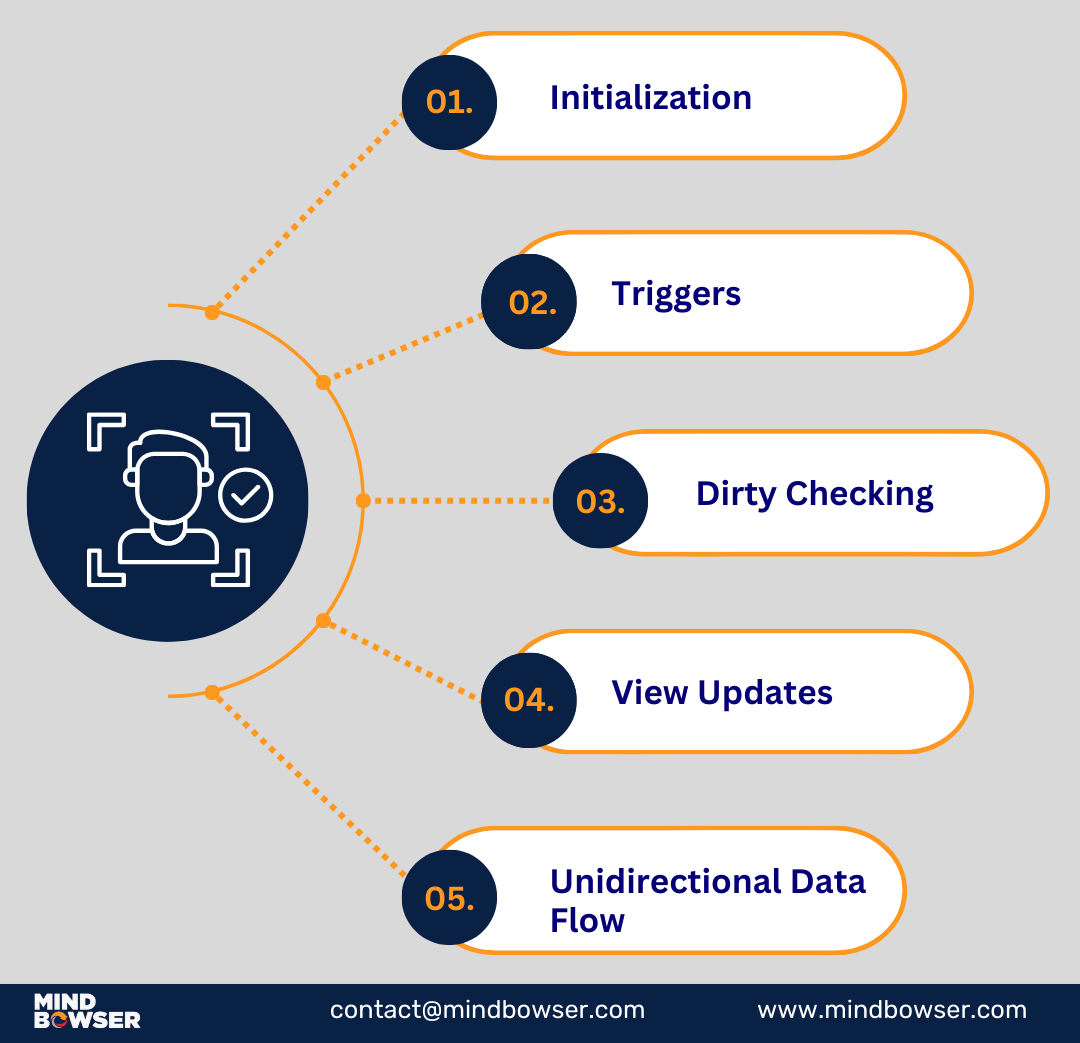

Angular change detection operates based on a few key principles:

✅ Initialization: When our Angular application starts, change detection initializes the component tree. Each component in the tree is associated with a change detection function, which defines how changes are detected and handled.

✅ Triggers: Various actions can trigger change detection in Angular, such as user interactions, HTTP requests, timers, or custom events. When any of these actions occur, Angular kicks off the change detection process.

✅ Dirty Checking: Angular employs a mechanism called “dirty checking” to compare the previous and current states of the component’s data. It examines all properties of the component and its child components to identify changes.

✅ View Updates: Once changes are detected, Angular updates the associated views by selectively re-rendering only the portions of the DOM that have changed. This selective rendering approach ensures optimal performance and responsiveness.

✅ Unidirectional Data Flow: Angular enforces a unidirectional data flow, which means that changes in parent components trigger change detection in child components, but not the other way around. This design simplifies debugging and ensures predictable behaviour.

Here’s a code snippet to illustrate the use of Angular’s change detection:

import { Component, ChangeDetectorRef } from '@angular/core';

@Component({
selector: 'app-change-detection-demo',
template: `
<div>
<h1>{{ message }}</h1>
<button (click)="updateMessage()">Update Message</button>
</div>
`,
})
export class ChangeDetectionDemoComponent {
message = 'Hello, Angular!';

constructor(private cdr: ChangeDetectorRef) {}

updateMessage() {
this.message = 'Updated message';
this.cdr.detectChanges(); // Manually trigger change detection
}
}

In this example, we have a component that displays a message. When the “Update Message” button is clicked, we manually trigger change detection using this.cdr.detectChanges().

Tips for Optimizing Change Detection

Efficient change detection is crucial, especially when dealing with large and complex applications. Here are some tips to optimize the change detection process in our Angular application:

☑️ Immutable Data: Using immutable data structures simplifies change detection because Angular can quickly determine if data has changed.

☑️ OnPush Change Detection Strategy: We can specify the change detection strategy for our components. The OnPush strategy triggers change detection only when input properties change or events are emitted, improving performance.

Here’s an example of a component using the OnPush change detection strategy:

➡️ Parent Component:

import { Component } from '@angular/core';

@Component({
selector: 'app-parent',
template: `
<h2>Parent Component</h2>
<app-child [message]="message"></app-child>
<button (click)="updateMessage()">Update Message</button>
`,
})
export class ParentComponent {
message = 'Hello from Parent';

updateMessage() {
this.message = 'Updated message from Parent';
}
}

➡️ Child Component with OnPush Change Detection:

import { Component, Input, ChangeDetectionStrategy, ChangeDetectorRef } from '@angular/core';

@Component({
selector: 'app-child',
template: `
<h3>Child Component</h3>
<p>{{ message }}</p>
`,
changeDetection: ChangeDetectionStrategy.OnPush, // Use OnPush strategy
})
export class ChildComponent {
@Input() message: string;

constructor(private cdr: ChangeDetectorRef) {}

ngAfterViewInit() {
this.cdr.detach(); // Detach change detection
}
}

☑️ Async Pipe: When working with asynchronous operations, use Angular’s Async Pipe to automatically trigger change detection when new data arrives.

Here’s an example using the Async Pipe:

import { Component } from '@angular/core';
import { Observable, interval } from 'rxjs';

@Component({
selector: 'app-async-pipe-demo',
template: `
<div>
<h1>{{ data$ | async }}</h1>
</div>
`,
})
export class AsyncPipeDemoComponent {
data$: Observable<number> = interval(1000);
}

By following these tips and best practices, we can optimize change detection in our Angular applications, resulting in better performance and a more maintainable codebase.
